High-Precision 3/4/5-Axis CNC Milling Services
Mastering complex geometries and tight tolerances of $pm 0.005$mm. We provide aerospace-grade rapid prototyping and mass production solutions for medical, automation, and global industrial sectors. Learn more about our capabilities.
High-Precision 3/4/5-Axis CNC Milling Services
Master complex geometries and $pm 0.005$mm tolerances with our ISO 9001 certified China factory. From rapid prototyping to mass production, we provide application-driven solutions for the aerospace, medical, and robotics industries. Learn more about our about page.
Inside Our Milling Factory: High-Performance Equipment Showcase
We don’t just claim capability; we show it. Our CNC mill factory is equipped with elite-tier equipment designed to handle the most demanding tolerances for aerospace, medical, and robotics.
Advanced Machining Centers (VMC & HMC)
Our workshop houses 30+ imported Vertical and Horizontal Machining Centers, including Hermle and Mazak brands. This infrastructure supports complex 3, 4, and 5-axis simultaneous milling for global industrial leaders.
Our state-of-the-art CNC mill factory floor, where advanced machinery meets ISO 9001:2015 quality standards for precision components.Multi-Axis Milling Matrix: 3, 4 & 5-Axis Capabilities

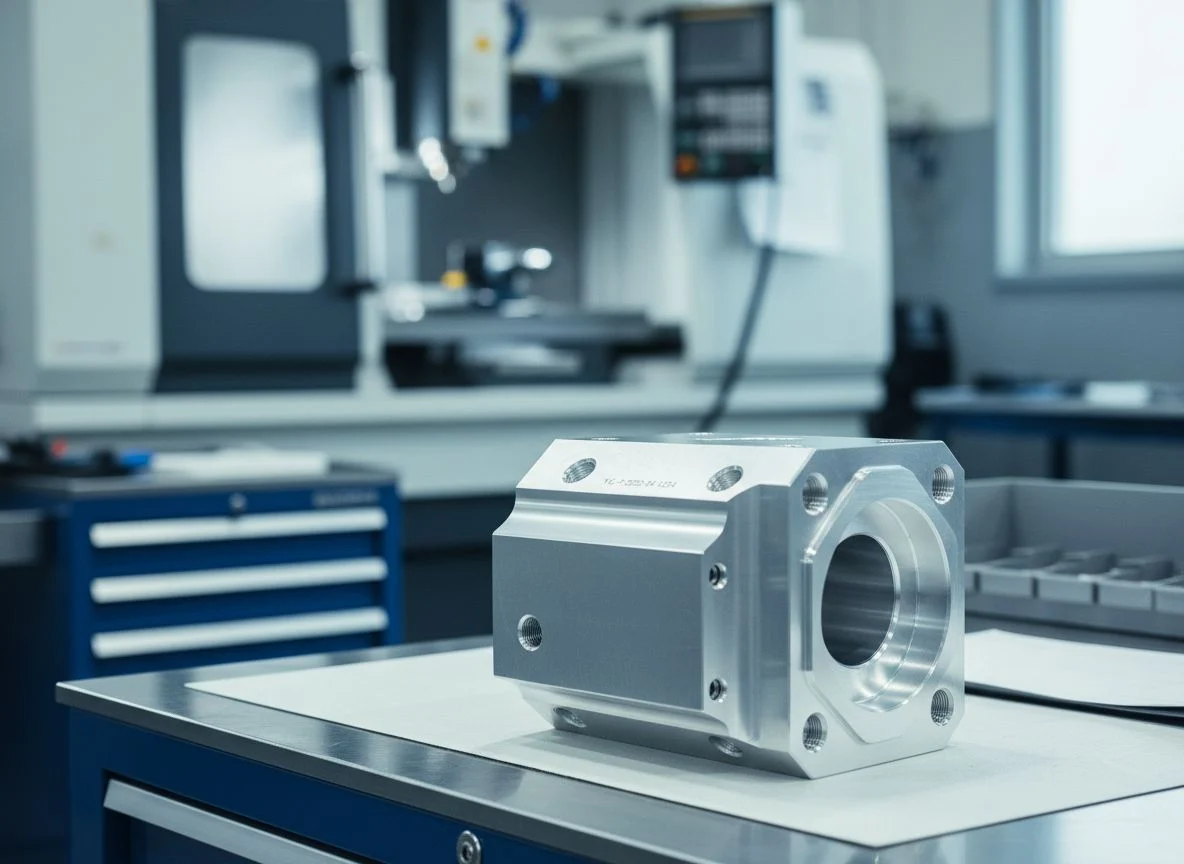

3-Axis CNC Milling
The industry standard for cost-effective production of prismatic parts and basic geometries using X, Y, and Z linear motion.
- Optimized for face milling, pocketing, and drilling
- Minimal setup costs for rapid prototyping
- Best for brackets, enclosures, and flat plates

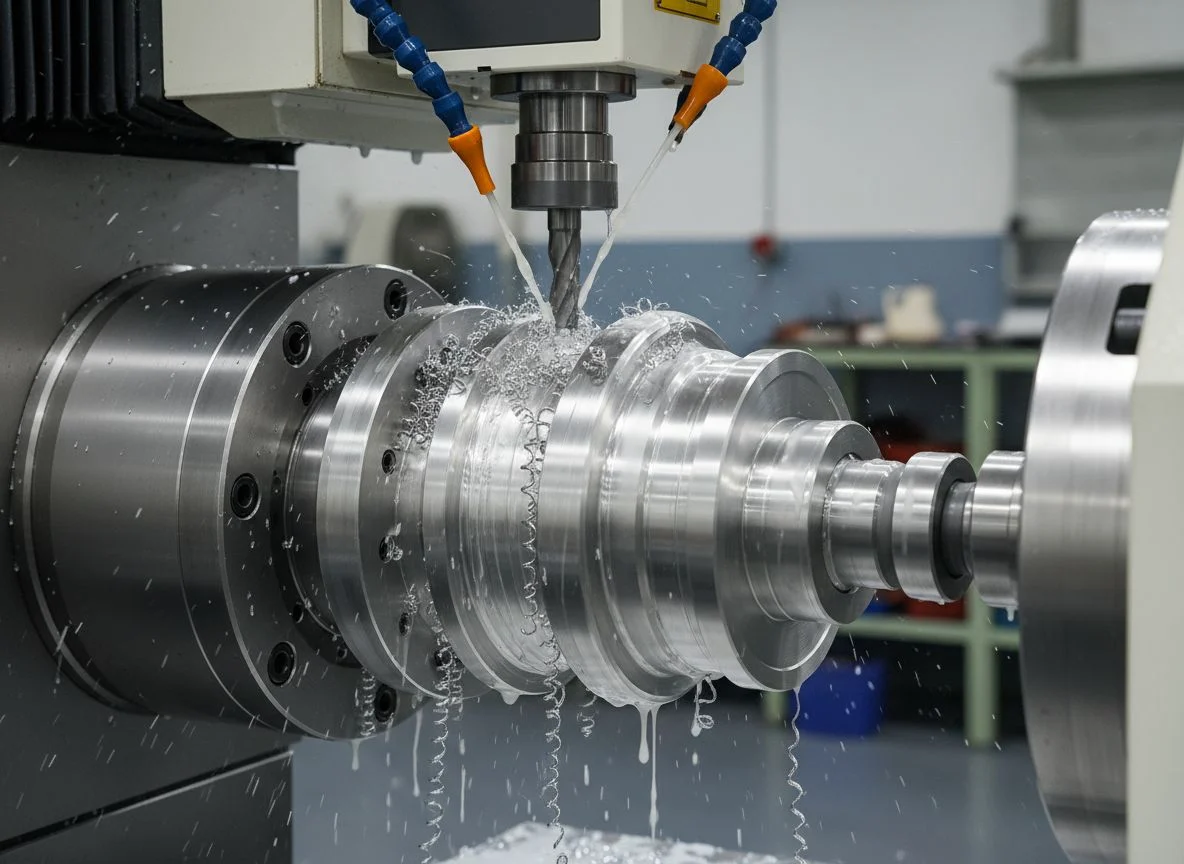

4-Axis CNC Machining
Features an additional rotary A-axis (indexing), allowing for machining on four sides or continuous rotary cutting.
- Supports rotary indexing and wrap-around milling
- Reduced re-fixturing for complex cylindrical parts
- Ideal for cams, shafts, and helical gear components

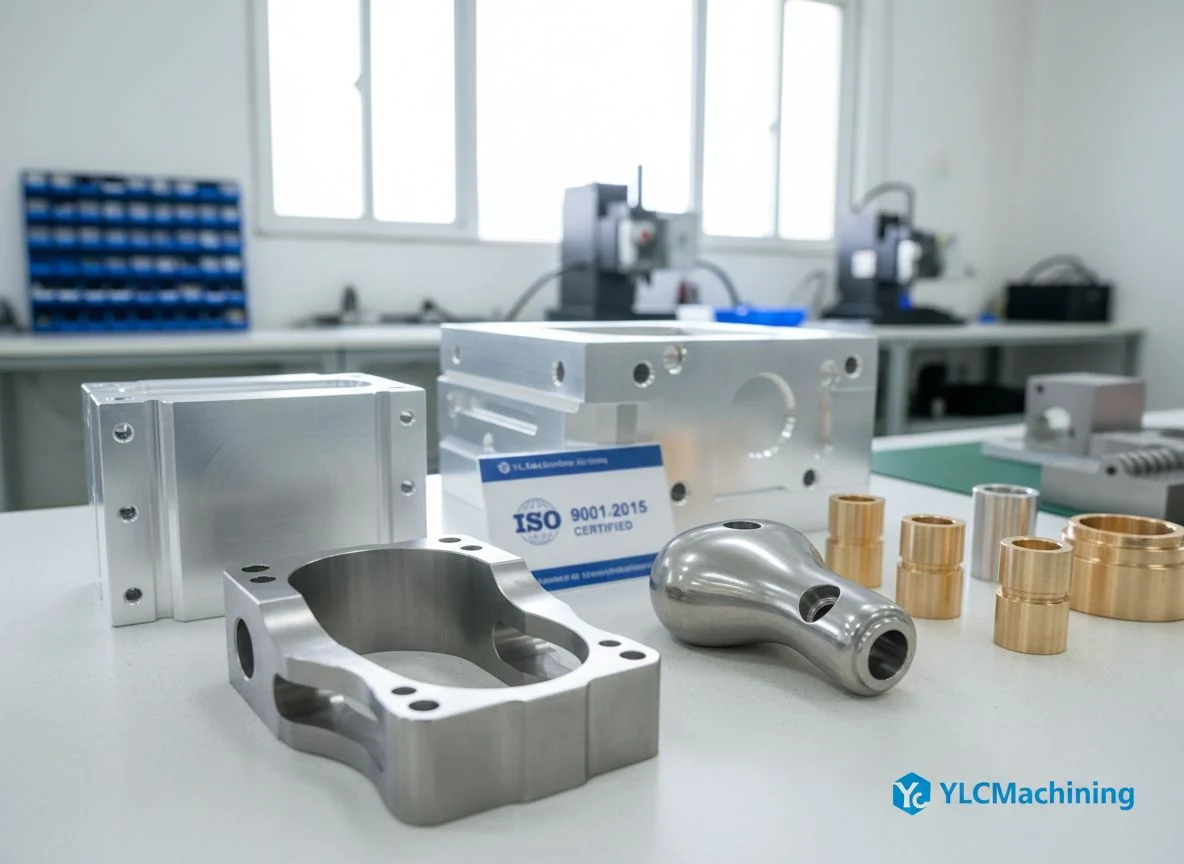

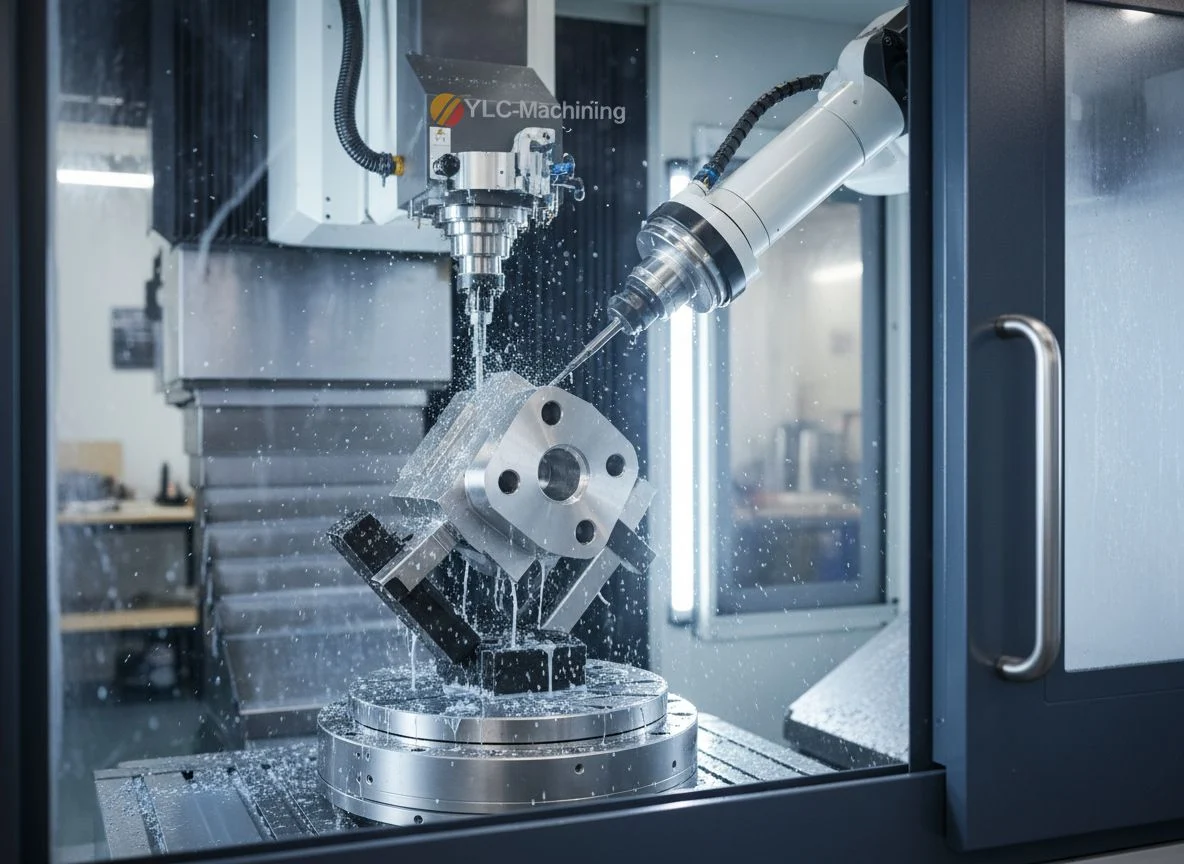

5-Axis Simultaneous Milling
Advanced simultaneous 5-axis movement tackles the most demanding 3D geometries with unparalleled precision. Learn more about our capabilities to handle complex milling.
- Eliminates multiple setups for superior accuracy
- Expertly handles impellers, turbine blades, and undercuts
- Preferred for aerospace, medical, and robotics parts

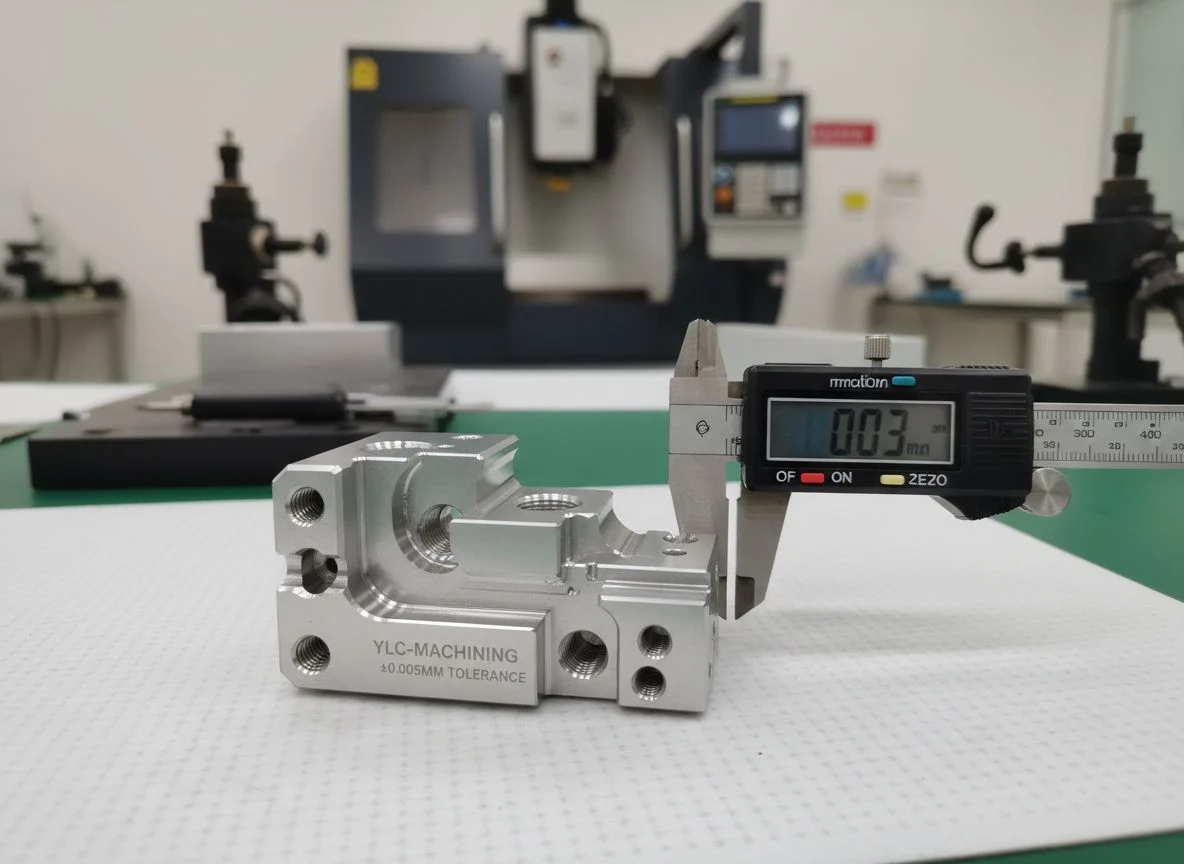

Technical Specifications: The Engineer’s Perspective
ProtoBatch CNC bridges the gap between complex CAD designs and high-performance reality. Our facility is engineered for "Precision-First" manufacturing, leveraging 20,000 RPM spindles and advanced 5-axis toolpaths to maintain micron-level accuracy across diverse material grades.
We specialize in overcoming mechanical challenges like thin-wall stability, deep-pocket geometry, and hard metal removal. Every project undergoes rigorous DFM analysis to ensure your tightest tolerances are met with 100% repeatability.
- Work Envelope: Large-part milling up to $2000 times 800 times 800 times 600$ mm
- Precision Limits: Ultra-tight tolerances down to ±0.005 mm

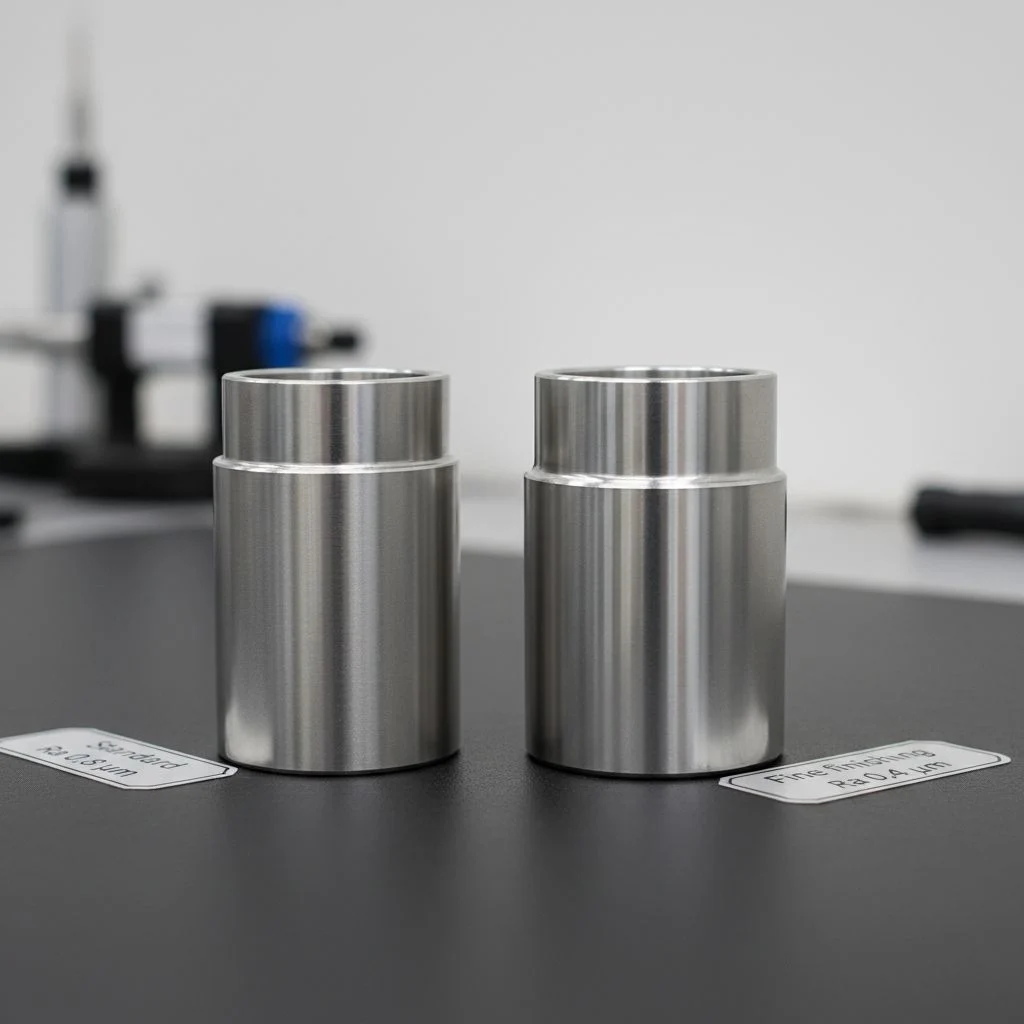

- Surface Integrity: Standard Ra 0.8 µm; Fine finishing to Ra 0.4 µm
- Micro-Milling: Minimum tool diameter of 0.1 mm for intricate features
Advanced Material Selection for Precision Milling
ProtoBatch CNC eliminates machining constraints through a comprehensive inventory of certified metals and engineering plastics. Our facility is optimized for varied material behaviors, from high-speed aluminum removal to the complex thermal management required for Grade 5 titanium, ensuring structural integrity and tight tolerances.

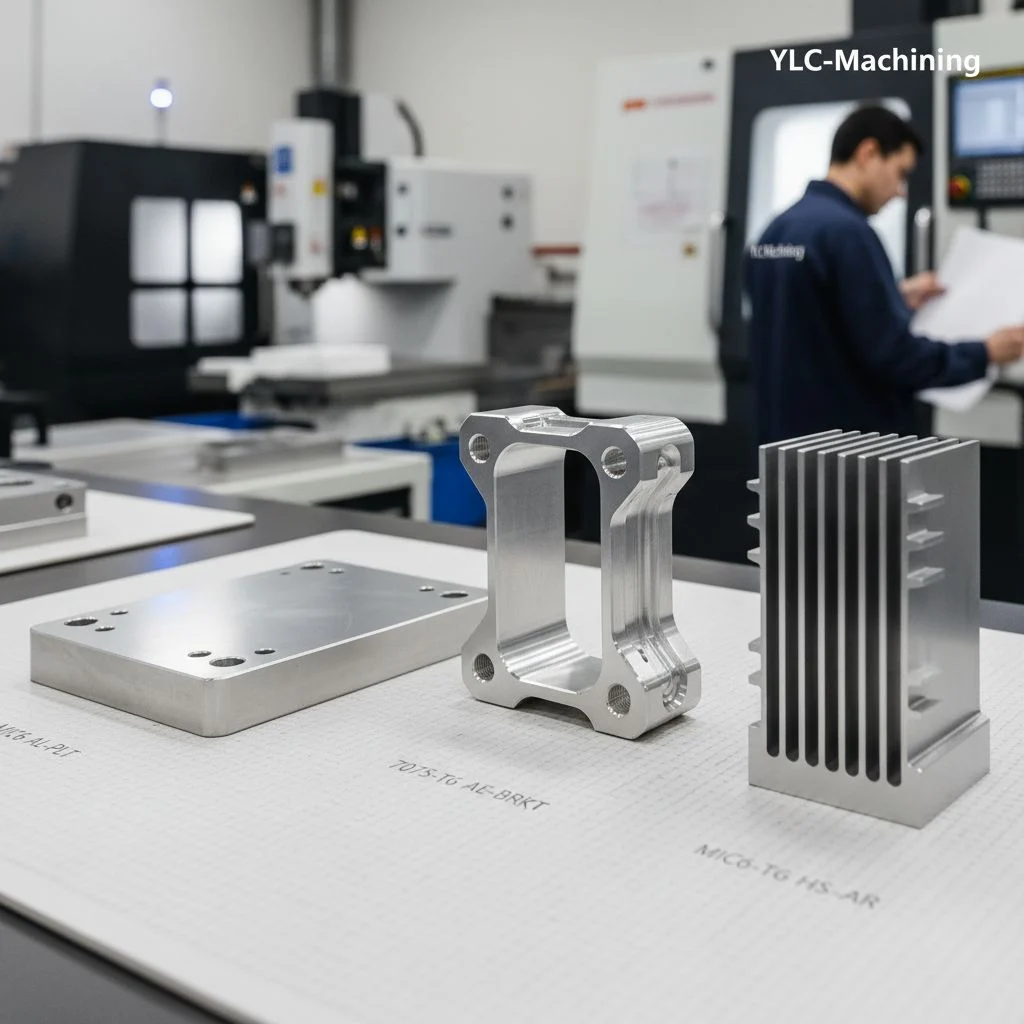

- Aluminum & Light Alloys: High-efficiency milling of 6061, 7075, and MIC6 for aerospace brackets and high-aspect-ratio heat sinks.
- Stainless & Tool Steels: Heavy-duty machining of 304, 316L, and 17-4PH, delivering burr-free finishes for medical and industrial applications.
- High-Performance Plastics: Stress-free processing of PEEK, Delrin, and Ultem to prevent warping in complex electronic and surgical components.
- Refractory & Exotic Metals: Specialized tooling strategies for Titanium Grade 5 and Copper to ensure precision without work hardening.
Precision Milled Components: Evidence of Craftsmanship
Explore our gallery of custom milled components. From intricate 5-axis aerospace brackets to medical-grade manifolds, we demonstrate the high surface finish and tight tolerances achievable at our ISO 9001 certified CNC mill factory.

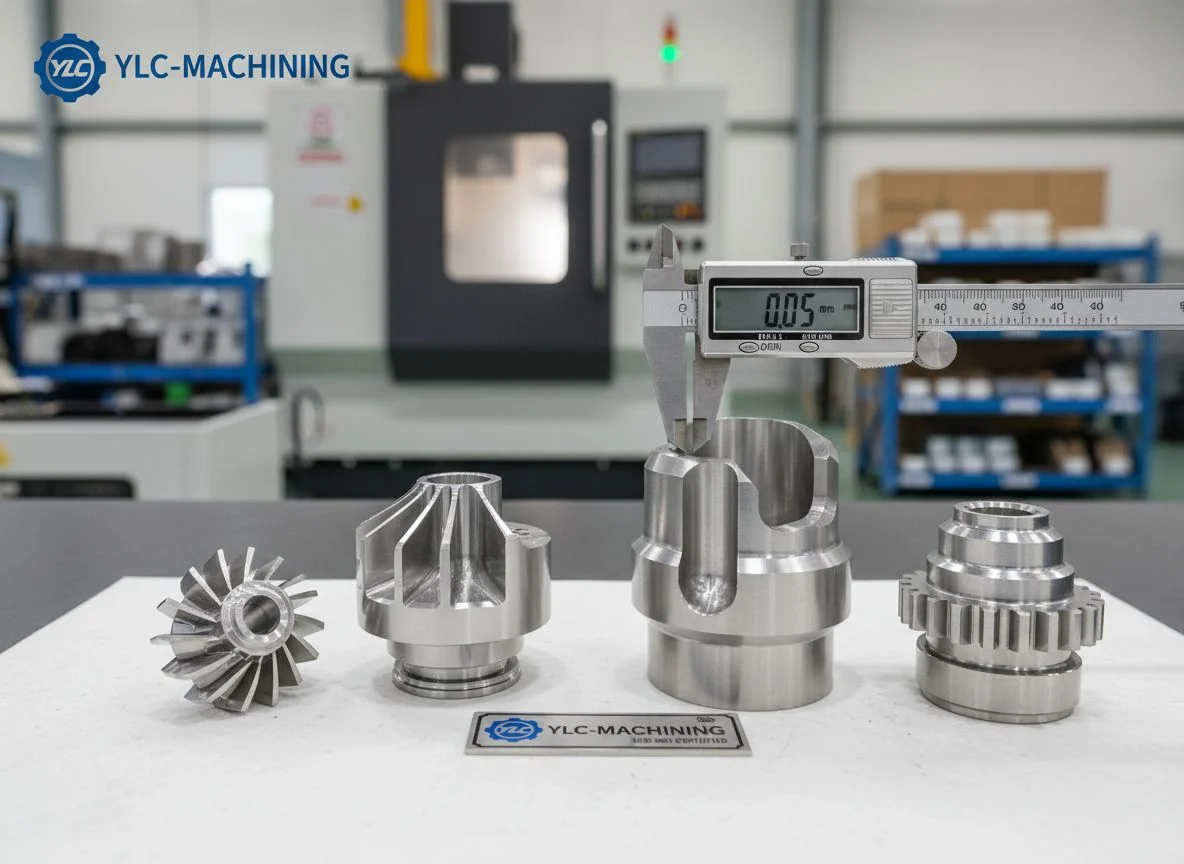

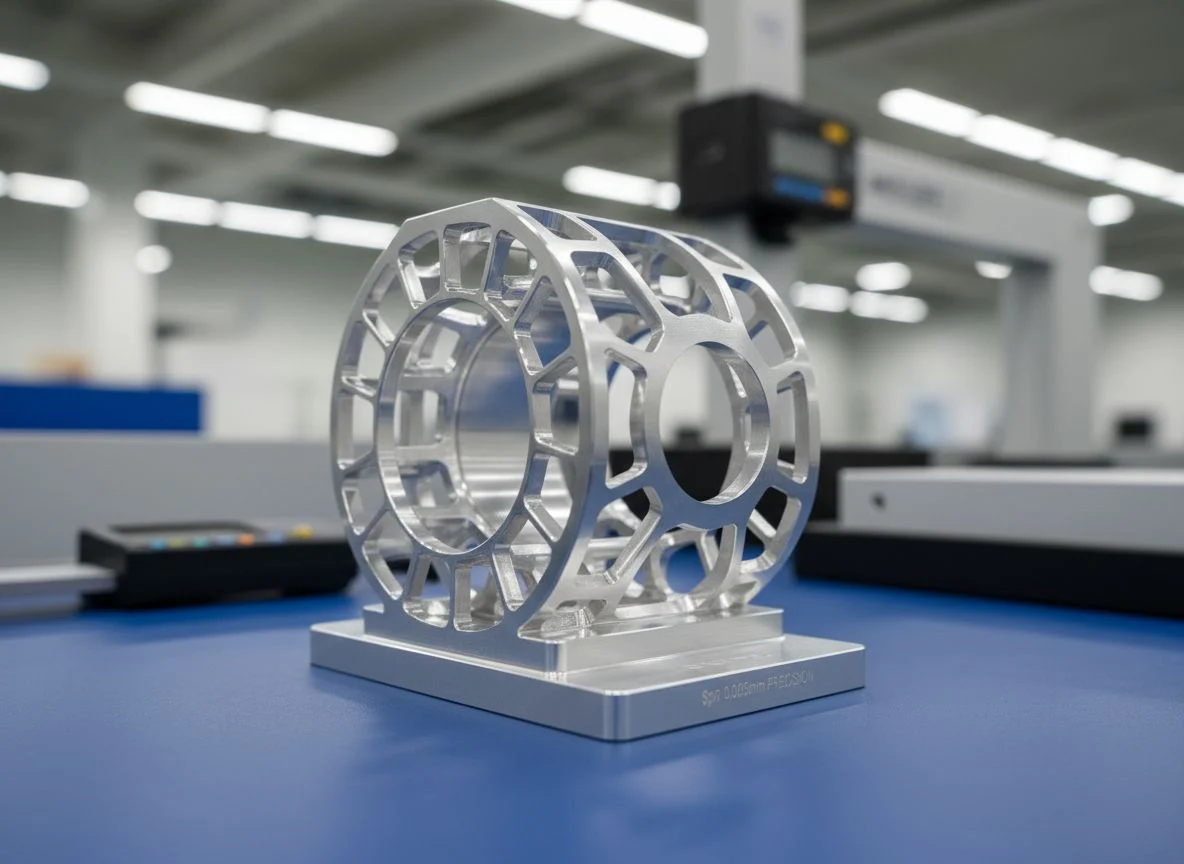

Complex Aerospace Parts
5-axis simultaneous milling of aerospace-grade aluminum featuring thin-wall geometries and $pm 0.005$mm precision.

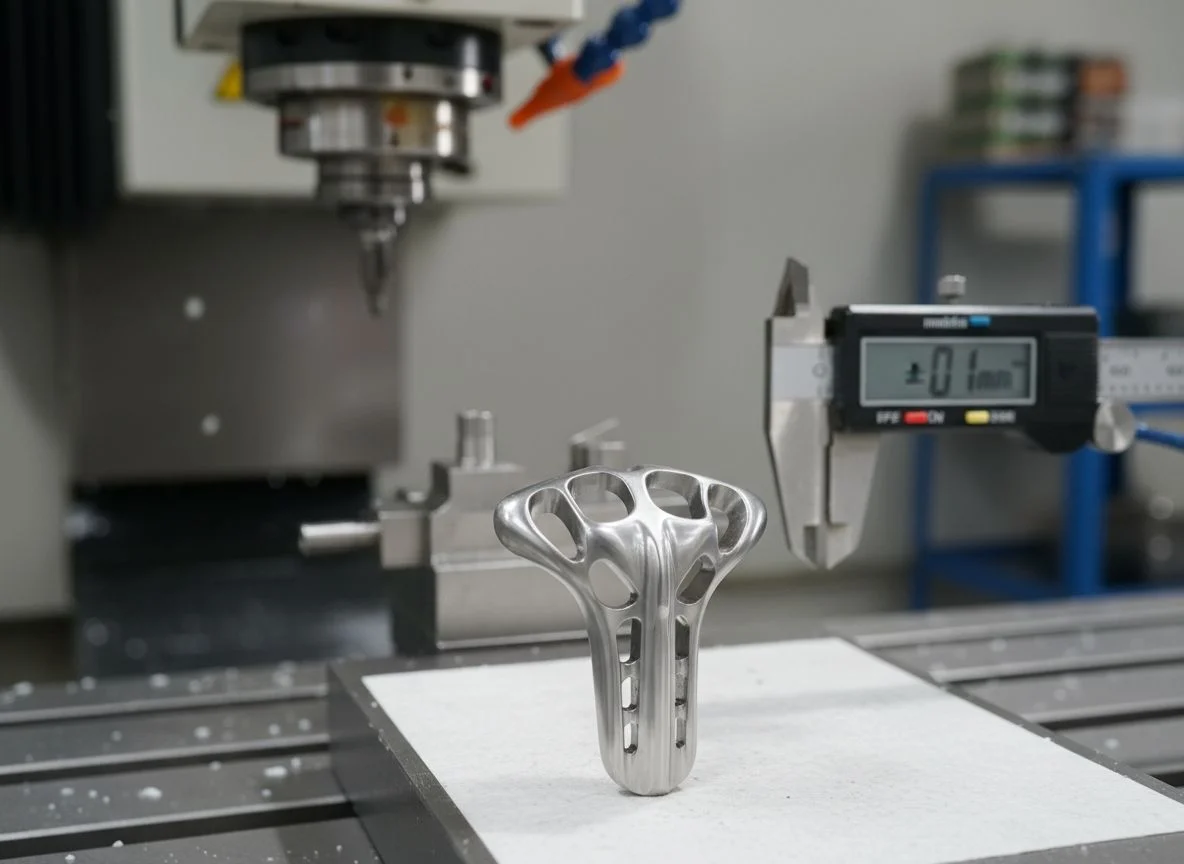

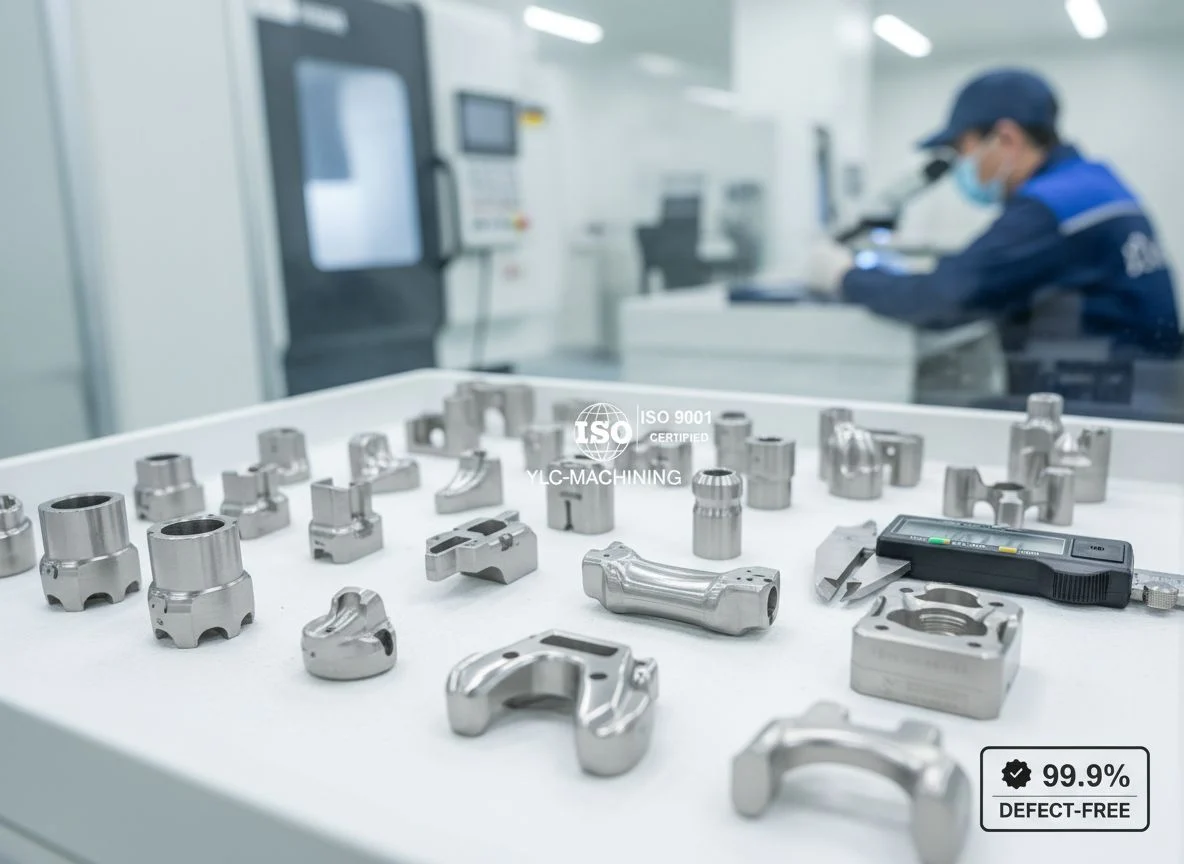

Medical Grade Precision
High-speed side milling of 316L stainless steel for medical devices, ensuring burr-free edges and Ra 0.8 surface finish.
Verified Quality Control
Rigorous CMM inspection and on-machine probing ensure every custom milling part meets strict dimensional accuracy.

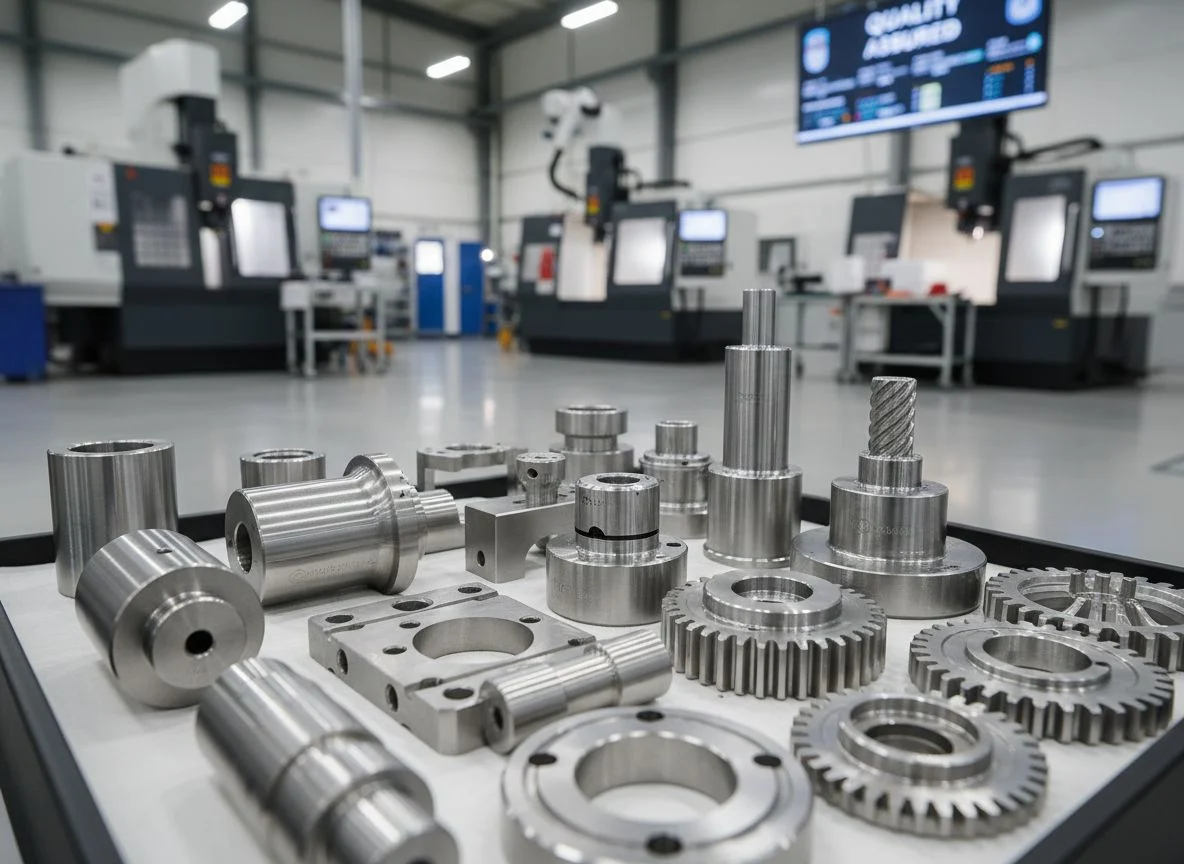

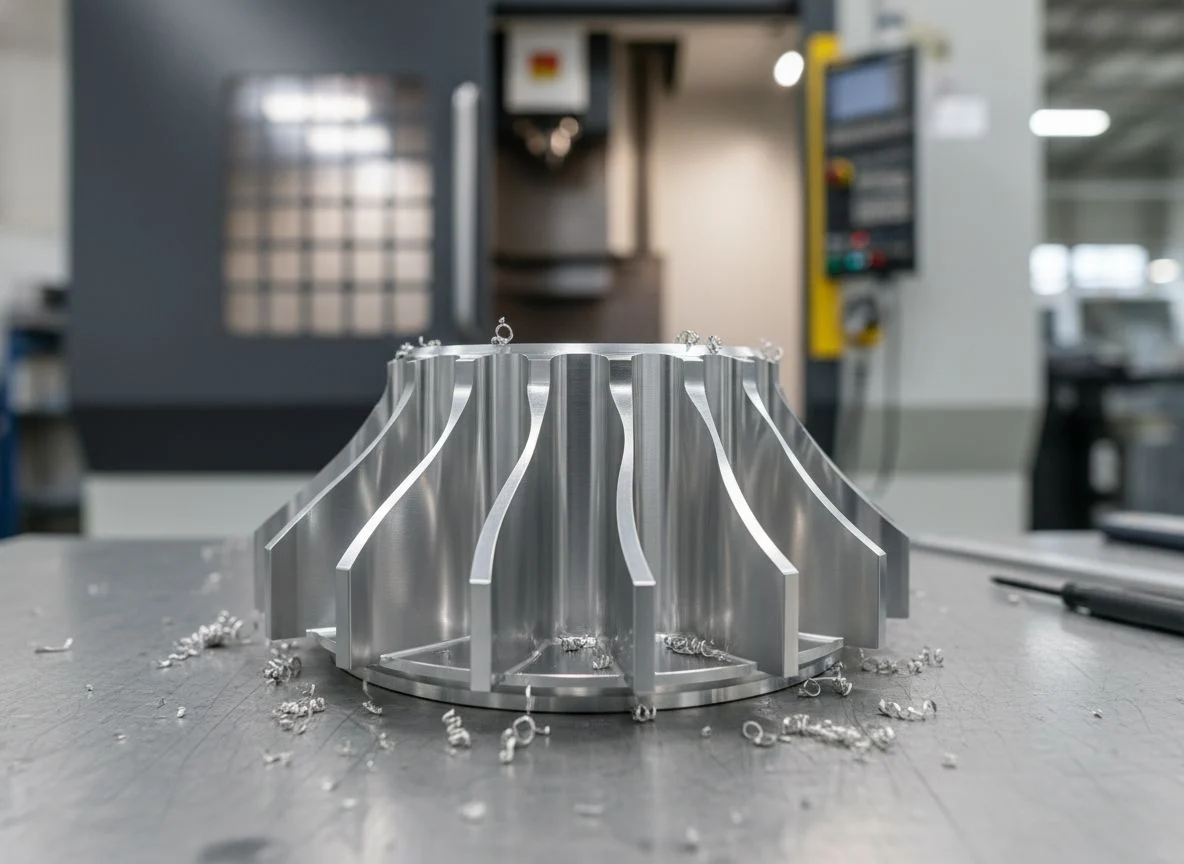

Advanced VMC & HMC
Utilizing 20,000 RPM spindles to deliver high-speed milling for large part production and complex internal pocketing.

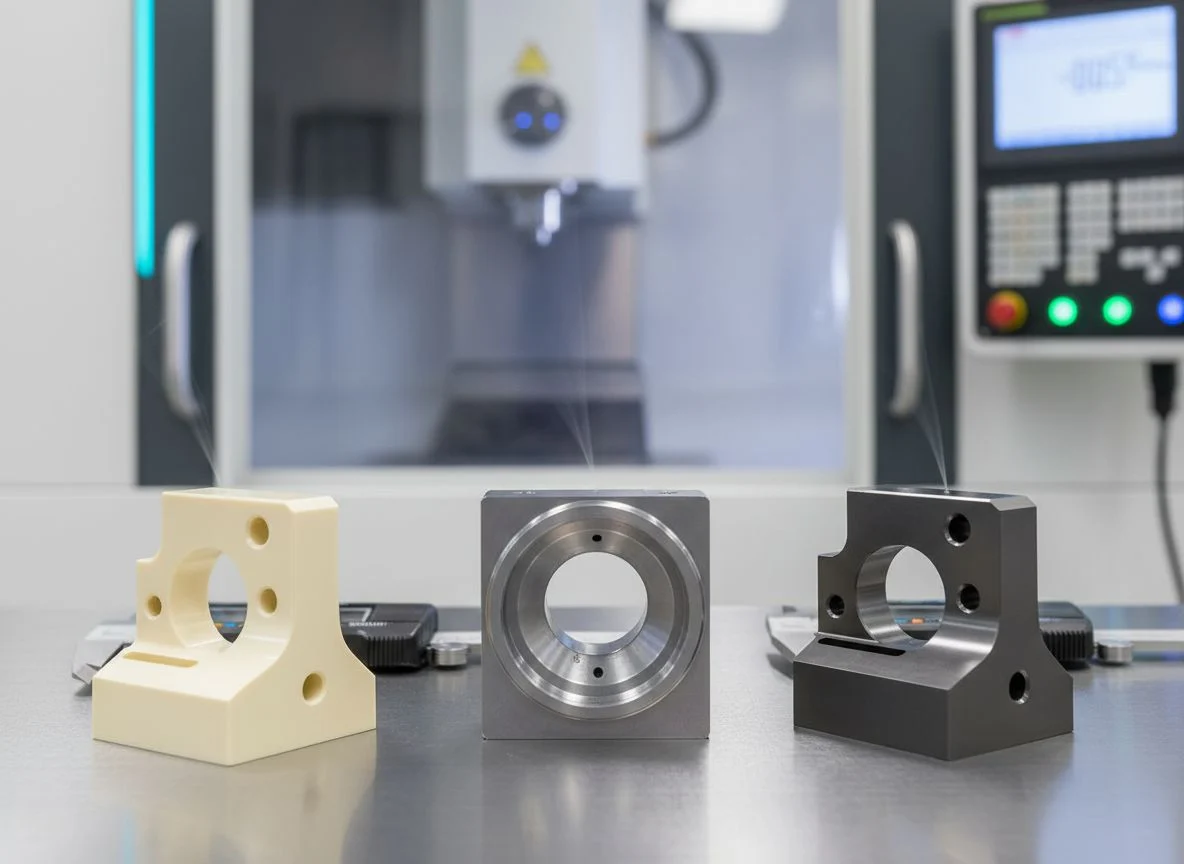

Diverse Material Capability
Specialized milling for PEEK, Titanium Grade 5, and Tool Steel, optimized with material-specific cooling strategies.
Scalable Batch Production
Seamless transition from rapid prototyping to mass production with automated pallet changers for high-volume efficiency.
Quality Assurance: Precision Verified
ProtoBatch CNC operates under a strict ISO 9001:2015 framework, utilizing advanced coordinate measuring machines (CMM) to ensure every custom milled part matches your CAD specifications with absolute fidelity. Our commitment to quality assurance guarantees your components meet the highest standards.

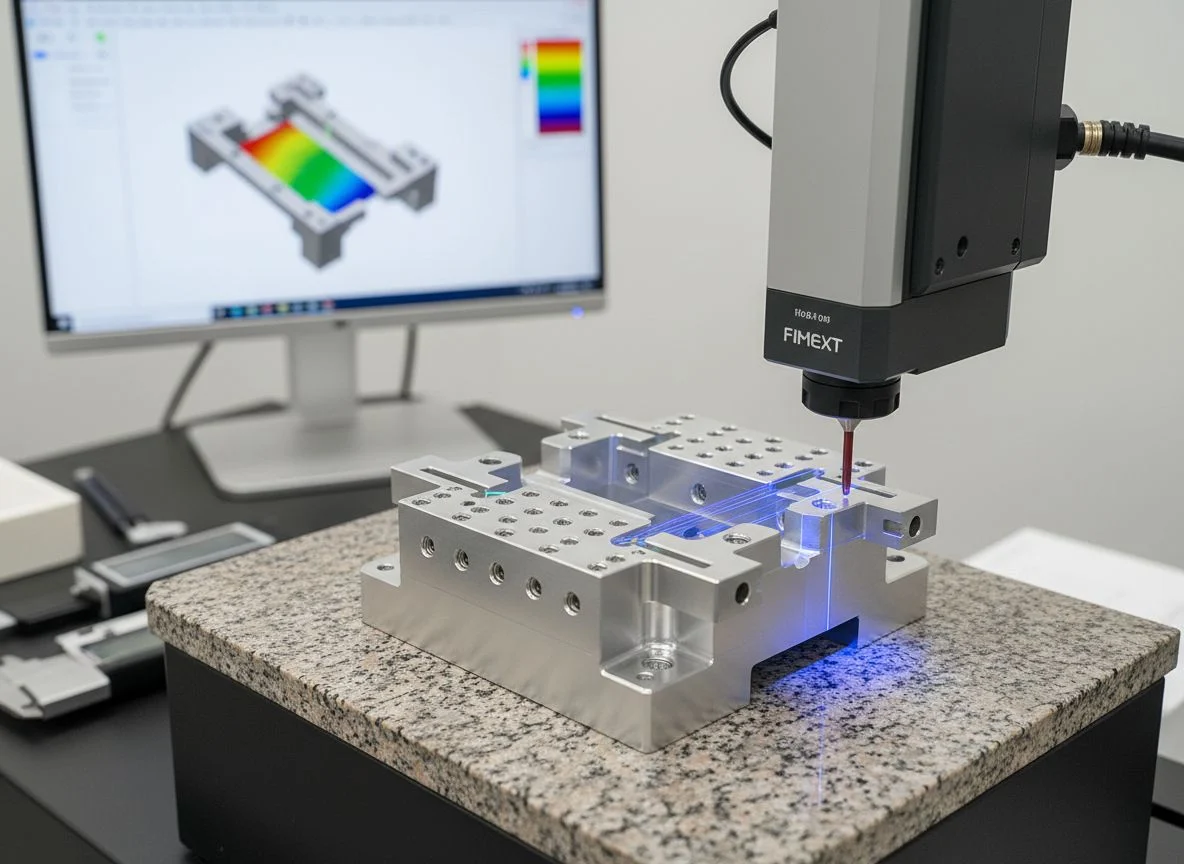

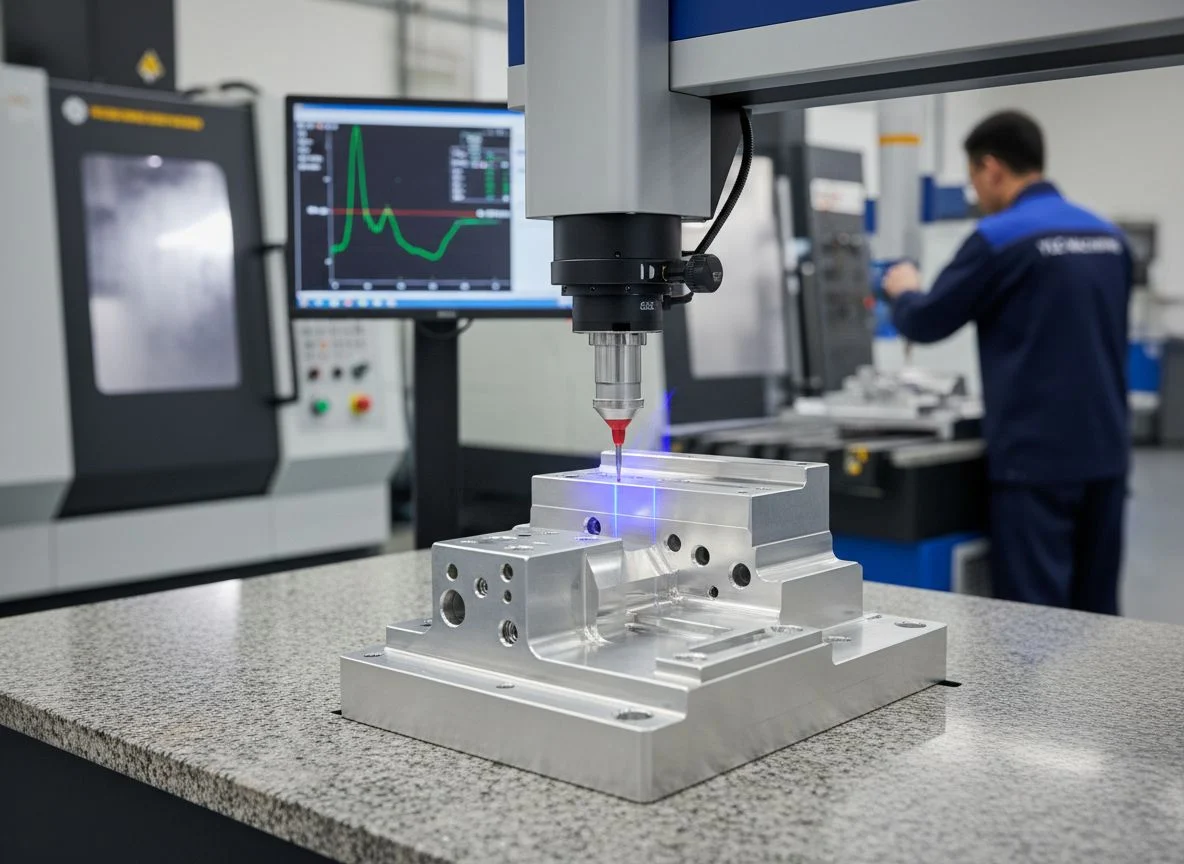

Metrology-Grade CMM Inspection
Our climate-controlled metrology lab is equipped with high-precision ZEISS CMMs capable of automated scanning for complex geometries, turbine blades, and impellers where profile accuracy is critical.
We bridge the gap between digital design and physical reality, verifying intricate features and tight position tolerances that manual gauges simply cannot capture.
Ultra-precision verification with measurement accuracy down to $pm 0.005$mm for mission-critical applications.
GD&T Validation
Comprehensive analysis of Geometric Dimensioning and Tolerancing to ensure perfect fitment in complex assemblies.
On-Machine Probing
Utilizing Renishaw wireless probes for in-process inspection and real-time tool wear compensation during machining.
Full Traceability
Detailed digital reports including FAI (First Article Inspection), Material Certs (MTR), and Surface Roughness data.
Certified Compliance Standards
Our quality management system is tailored for high-stakes industries, ensuring every shipment is backed by data-driven verification.
- Rigorous FAI protocols validate the production setup before launching mass production runs.
- In-process inspections for aerospace and medical parts to identify and correct deviations early.
- QC verification and traceable material certification accompany every domestic and global shipment.
Zero-Defect Commitment
From 5-axis impellers to thin-walled medical components, our CMM-verified workflow eliminates non-conformance before delivery.
Industry-Specific Precision Milling Solutions
>

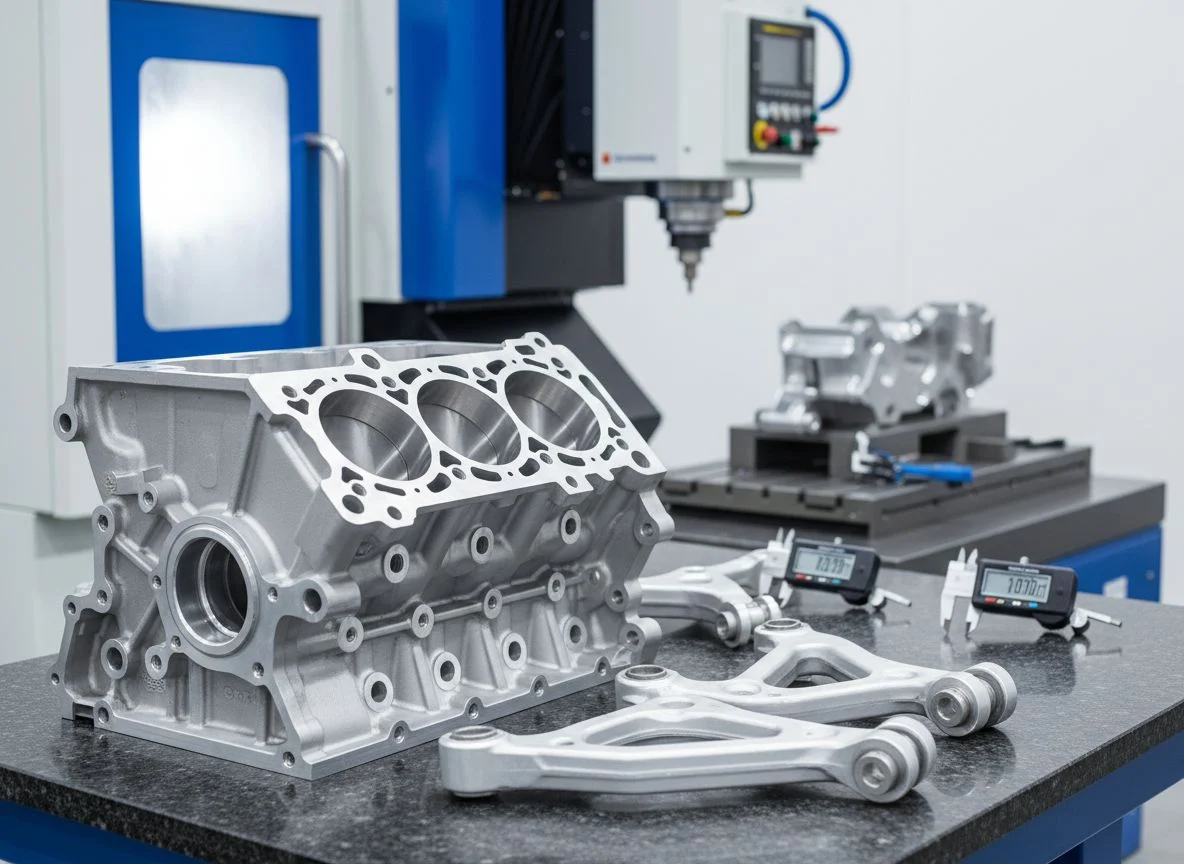

Automotive Engineering
ProtoBatch delivers high-performance automotive milling for engine blocks and suspension arms, providing the durability required for both rapid prototyping and high-volume production.

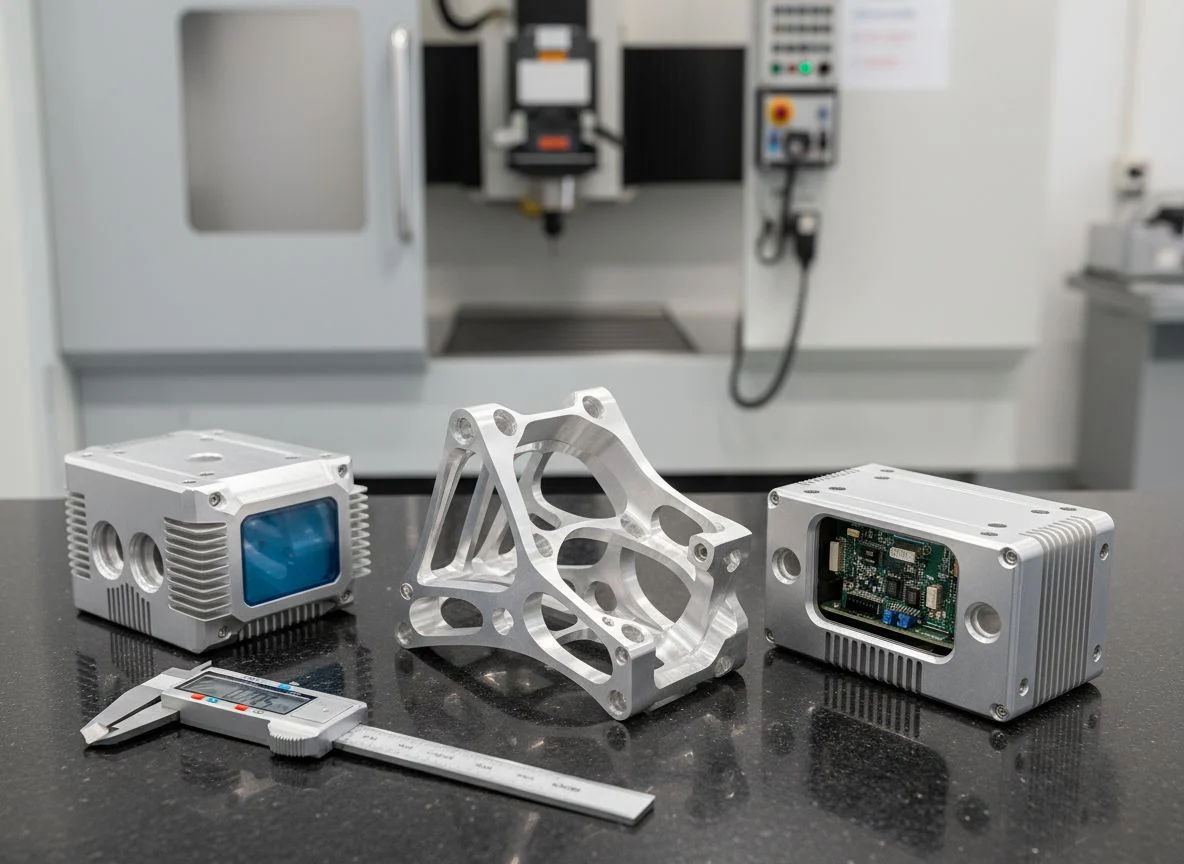

Aerospace & Defense
We specialize in mission-critical structural ribs and avionics housings, utilizing 5-axis simultaneous milling to master complex geometries and stringent weight-reduction specifications.

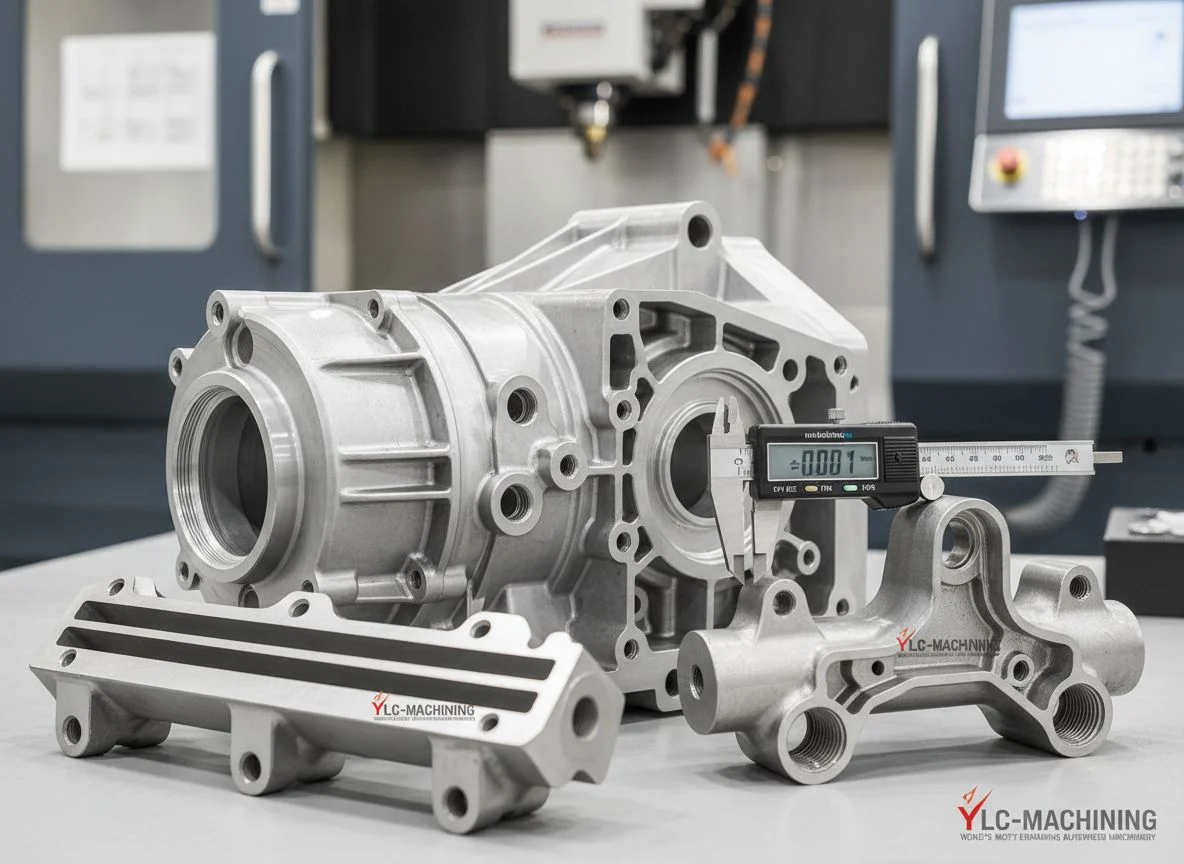

Industrial Automation
Precision milling for gearbox housings and heavy-duty manifolds, ensuring long-term mechanical reliability and tight tolerances for the world's most demanding automated machinery.

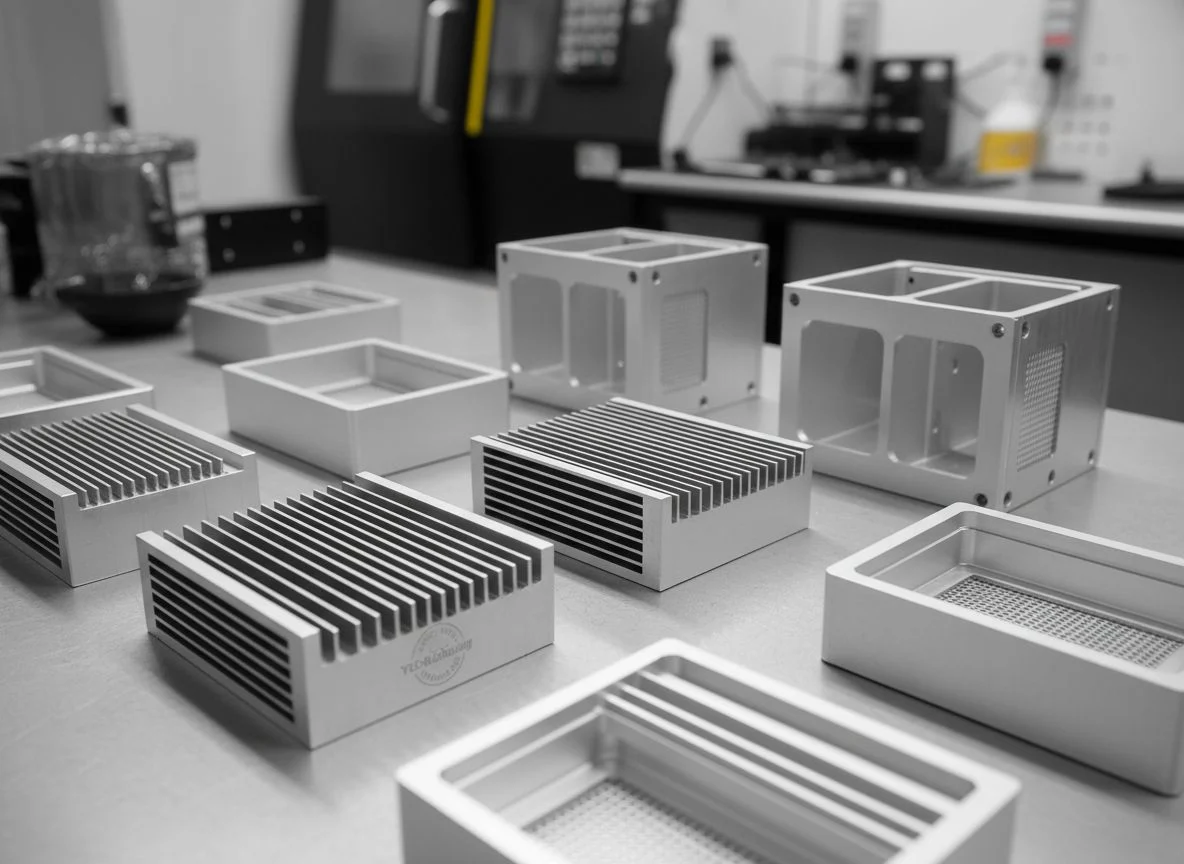

Electronics & Heat Sinks
Advanced micro-milling for high-aspect-ratio heat sinks and EMI-shielded enclosures, delivering burr-free finishes and optimized thermal management for high-density hardware.
Medical & Bio-Tech
ISO 9001 certified manufacturing of biocompatible implants and surgical guides, ensuring high surface finishes (Ra 0.4) and ultra-precise tolerances for life-saving applications.

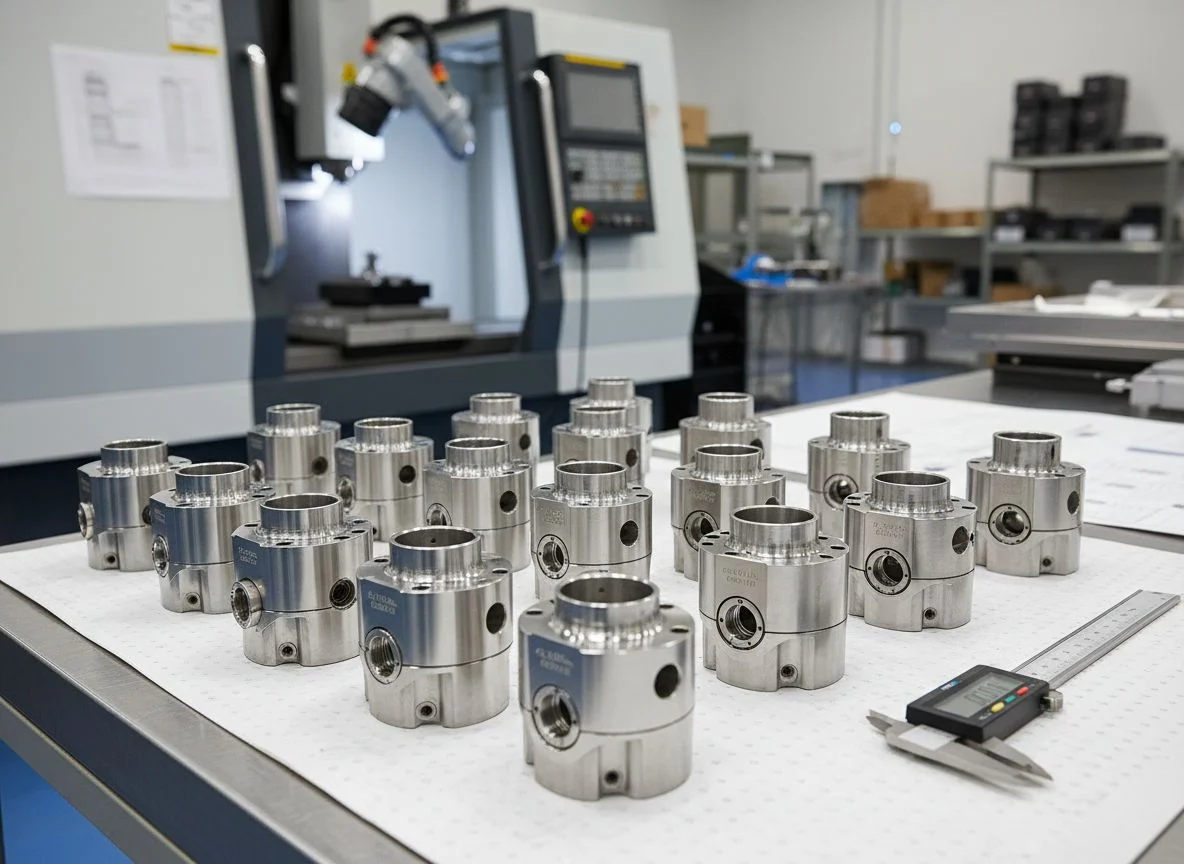

Robotics & R&D
Custom robotics parts milling for joint casings and actuators, maintaining exacting position tolerances to facilitate seamless motion and high-speed operation in modern robotics.

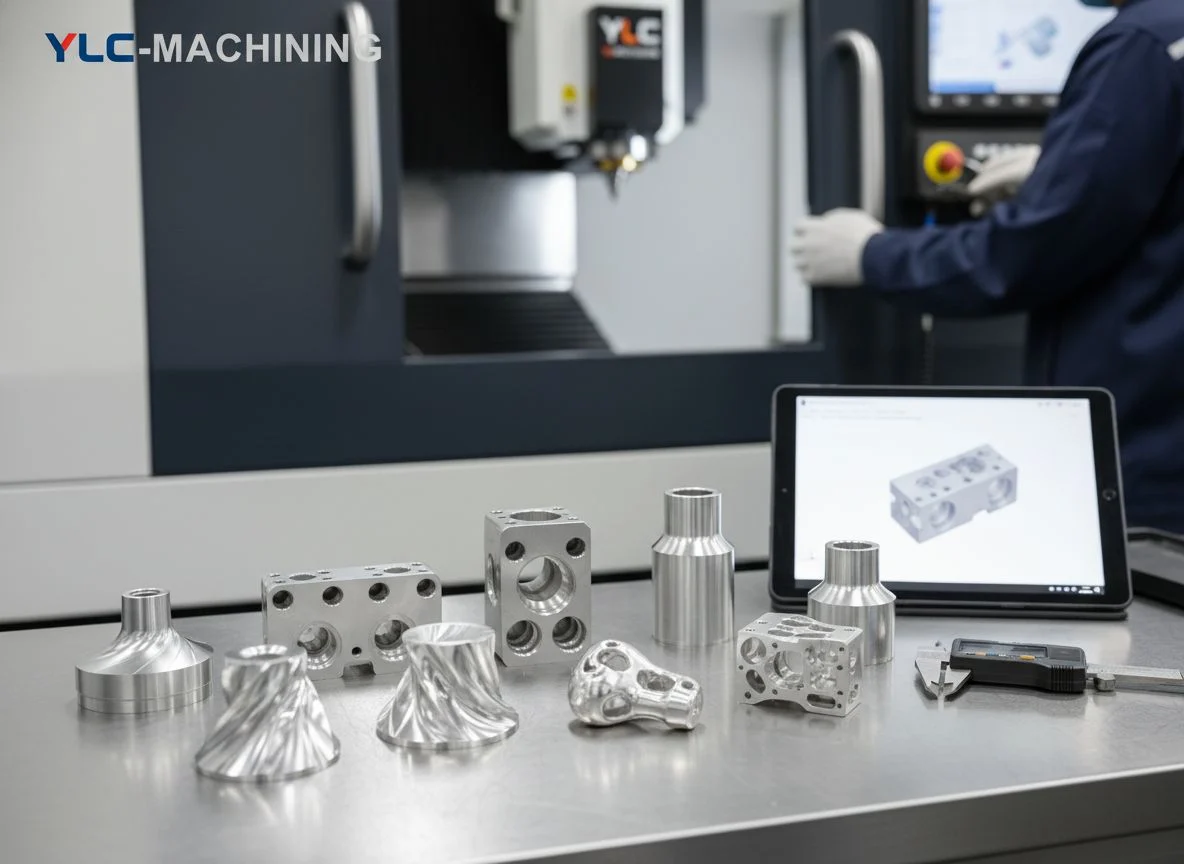

Flexible Scalability: From Rapid Prototypes to Mass Production
>Rapid Prototyping & Low-Volume Flexibility
Accelerate your R&D cycle with 24-hour turnaround on 1-10 piece runs. Our dedicated prototype machines use 5-axis simultaneous milling to validate complex geometries and tight tolerances, ensuring your design is optimized before scaling.

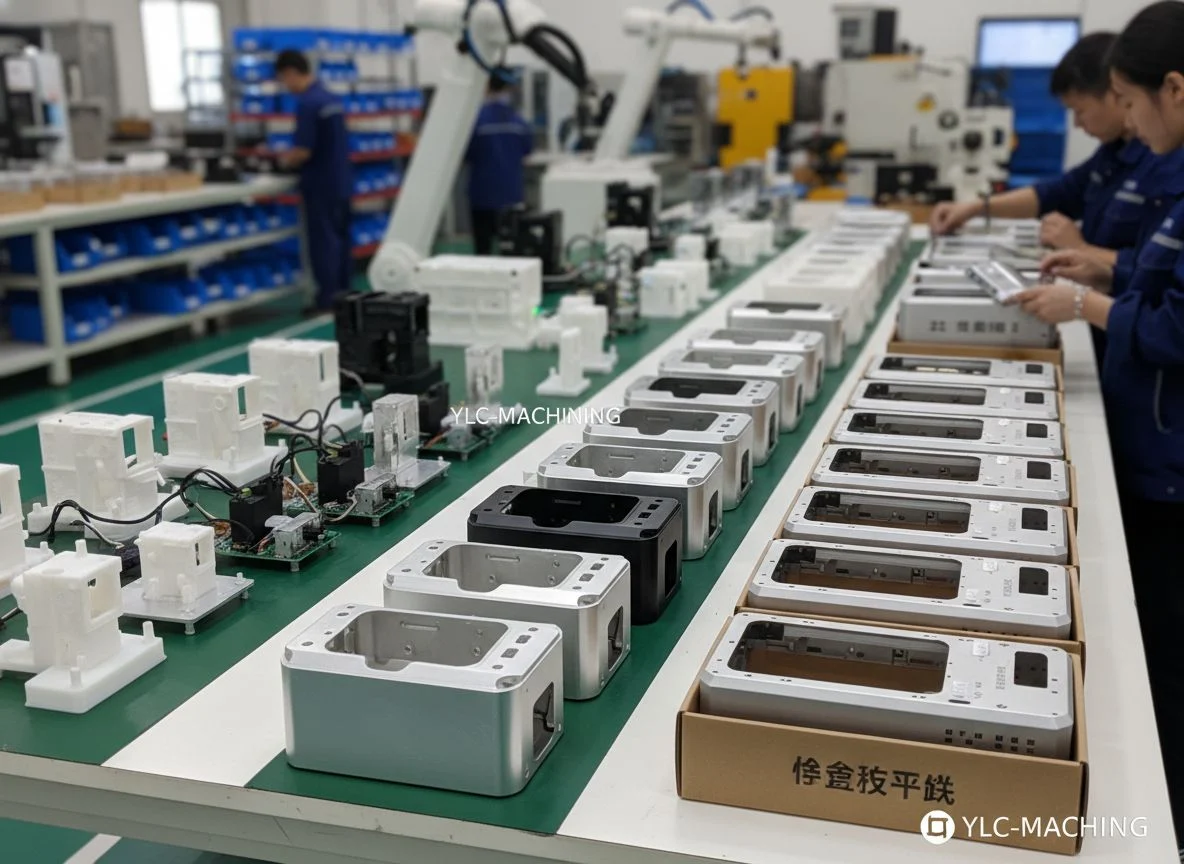

High-Volume Manufacturing & Cost Optimization
Seamlessly transition to 1,000+ units with our automated pallet changers and custom fixturing. We maintain ±0.005mm accuracy across entire batches, leveraging high-speed spindles to reduce cycle times and lower your per-part costs. Discover how our products can support scalable production.

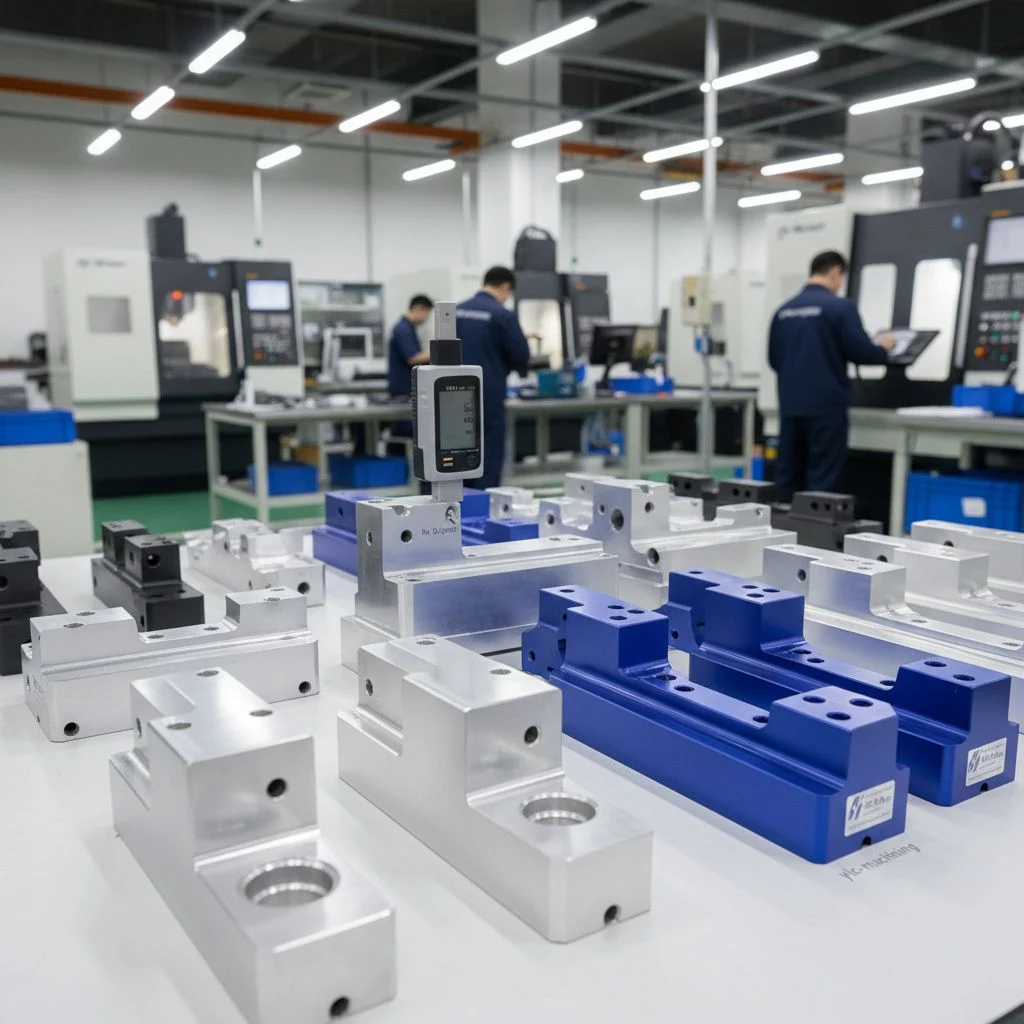

Surface Finishing & Post-Processing Services
At ProtoBatch CNC, our surface finishing for milled parts transforms raw components into assembly-ready solutions. We offer a comprehensive suite of post-processing services to ensure your custom parts meet both functional performance and cosmetic milling standards.
From achieving a uniform bead blasted finish to delivering high-precision anodized milled parts, our facility manages everything in-house. We specialize in enhancing corrosion resistance, wear properties, and surface roughness (Ra) to your exact engineering specifications.
Our quality-controlled process ensures that protective coatings like chromate conversion or passivated stainless milling are applied without compromising tight dimensional tolerances or material integrity.
Mill Finish & Bead Blasting
Standard as-milled finish (Ra 1.6-3.2) for functional use, or professional bead blasting to remove tool marks and create a non-reflective, matte surface texture.
Anodizing & Passivation
Type II/III anodizing for aluminum durability and color, plus passivated stainless steel milling to maximize corrosion resistance for medical and aerospace applications.
Polishing & Coating
Mirror-grade polished aluminum for high-aesthetic requirements, alongside powder coating and chromate conversion for superior electrical conductivity and protection.
Precision-Driven DFM Workflow
Accelerate your path from CAD to finished component with our integrated Design for Manufacturability (DFM) analysis, engineered to eliminate production bottlenecks and optimize milling costs. Learn more about our company and expertise.

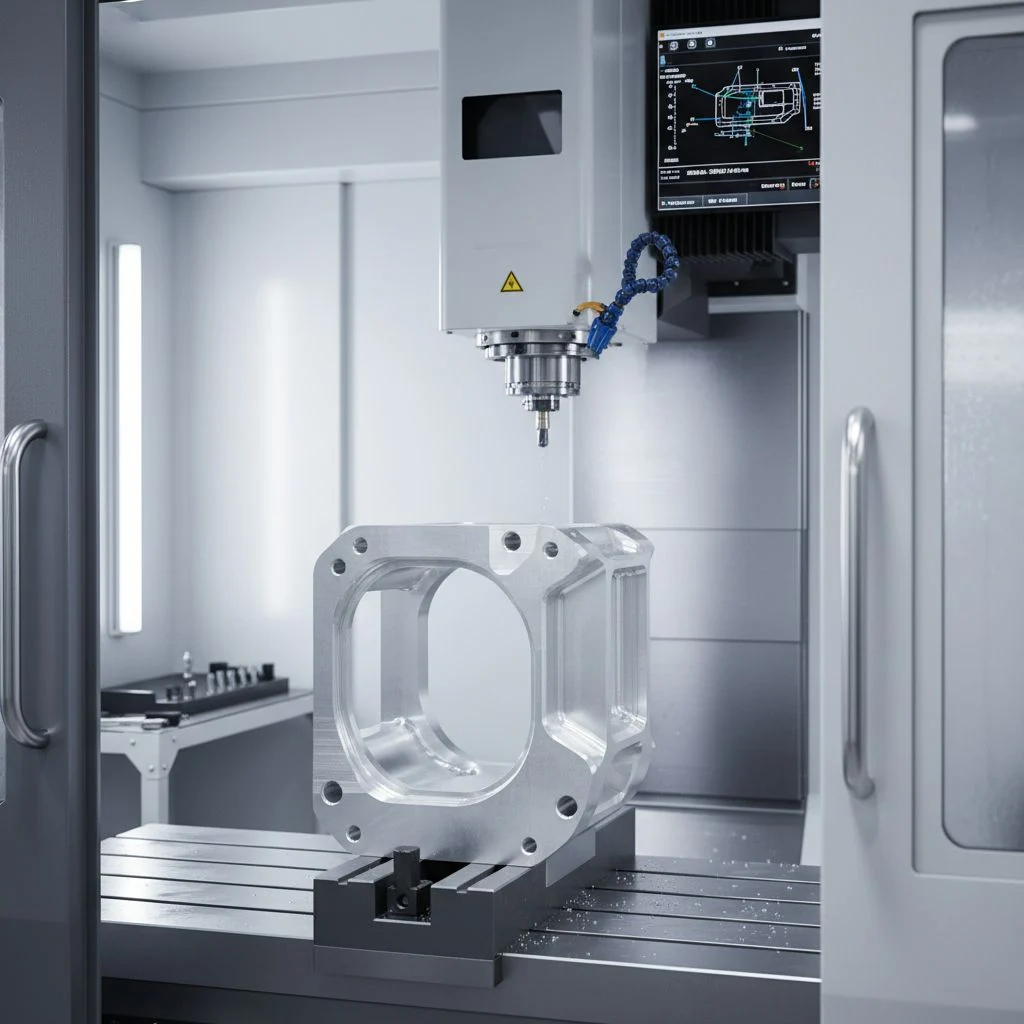

Intelligent Geometry Validation
Our digital DFM system meticulously scans your STEP or IGES files for milling-specific challenges, such as deep pockets that exceed tool reach or impossible internal radii that require specialized tooling.
By identifying these constraints before machining begins, we ensure your 3, 4, or 5-axis milling project is perfectly tuned for high-speed material removal and superior surface finishes.
Eliminate up to 60% of redesign time by resolving machining constraints before the first chip is cut.

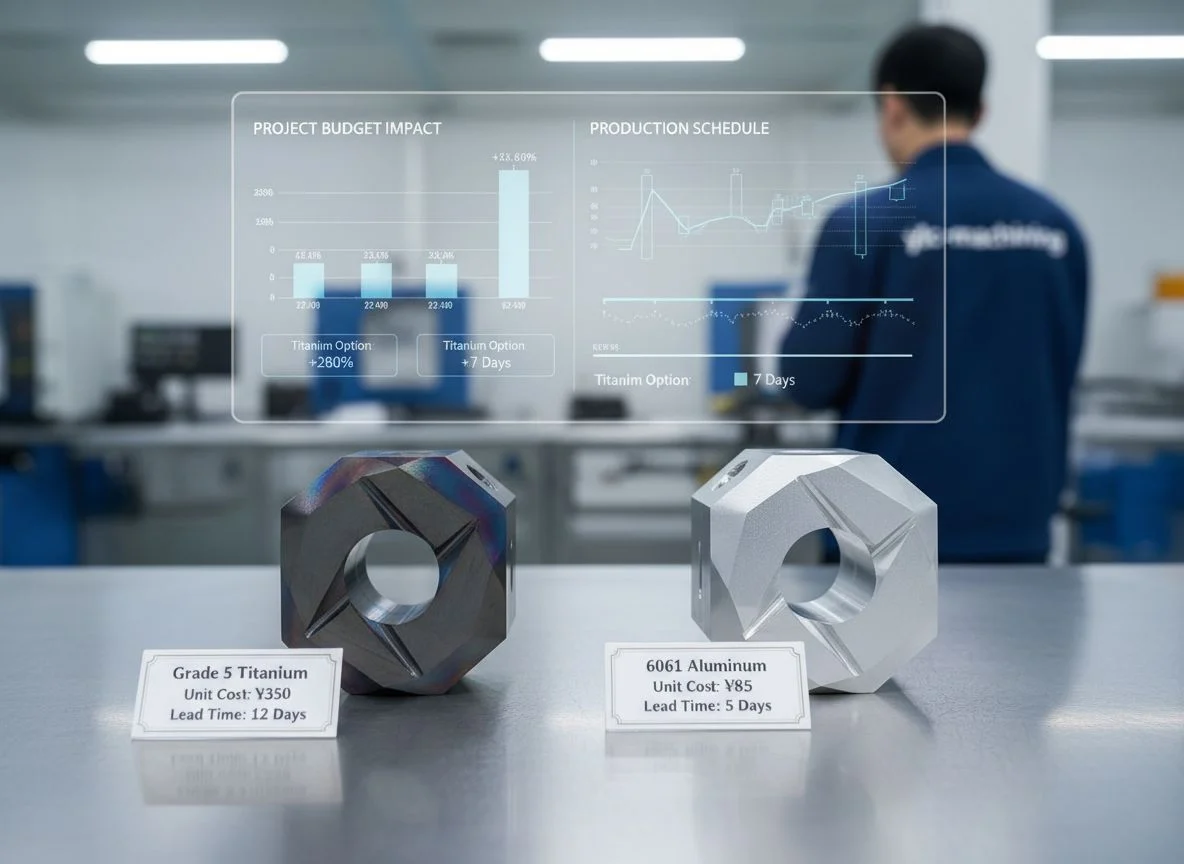

Transparent Cost & Tooling Optimization
Receive instant feedback on how design choices—like material selection (Grade 5 Titanium vs. 6061 Aluminum)—impact your budget and production lead times.
Our platform analyzes toolpath complexity and fixture requirements to provide a transparent breakdown of your custom milling parts production costs.
- ✓ Instant DFM feedback for complex 5-axis geometries
- ✓ Material-specific machining strategy recommendations
- ✓ Suggestions to reduce setup counts via multi-axis milling
Seamless Project Integration
Upload & Scan
Submit your 3D CAD data through our secure portal for an instant automated check against our factory’s machine capabilities. For detailed questions or support, please contact our team.
Expert Engineering Review
Collaborate with our CNC specialists to refine tolerances and optimize features for rapid prototyping or mass production.
Authorize & Mill
Approve your quote and move directly into production with real-time status tracking and global delivery via DHL/FedEx.
Direct-to-Factory Engineering Support
Connect directly with ProtoBatch CNC manufacturing experts to discuss tight tolerance requirements and complex multi-axis setups without the middleman.
Access detailed DFM reports, material certifications (MTR), and CMM inspection data within a centralized digital workspace designed for technical buyers.
2HR
Quote Response
24H
Prototype Lead-time
CNC Milling FAQ: Expert Technical Insights
>What is the difference between 3, 4, and 5-axis milling?
3-axis moves in X/Y/Z; 4-axis adds a rotary A-axis for cylindrical parts. 5-axis simultaneous milling adds a B-axis, enabling complex geometries like impellers with fewer setups.
What tolerances can your precision milling factory achieve?
Our standard tolerance is ±0.1mm. For high-precision aerospace and medical components, we achieve tight tolerances down to ±0.005mm using Zeiss CMM verification.
What is the maximum work envelope for large part milling?
Our large-scale Vertical Machining Centers (VMC) handle parts up to 2000 x 800 x 600 mm, making us a preferred partner for heavy-duty industrial frames and housings.
Which materials are best suited for custom CNC milling?
We excel in Aluminum (6061/7075), Stainless Steel (304/316L), and Titanium Grade 5. We also offer specialized plastic milling for PEEK, Delrin, and Polycarbonate.
Can you handle complex geometries and intricate designs?
Yes, our advanced 5-axis milling centers and experienced machinists can produce parts with complex curves, undercuts, and tight internal features.
What quality control processes do you employ?
We use Zeiss CMMs for dimensional inspection, Keyence IM-8000 for rapid measurement, and regularly calibrate our equipment to ensure accuracy and consistency.
Start Your Precision Milling Project Today
Partner directly with a high-end CNC milling factory for your complex 3, 4, and 5-axis needs. From aerospace-grade titanium components to rapid medical prototypes, we deliver ±0.005mm accuracy and ISO-certified quality. Upload your CAD files for a transparent quote in 2 hours. Learn more about our company background and dedication to quality.
