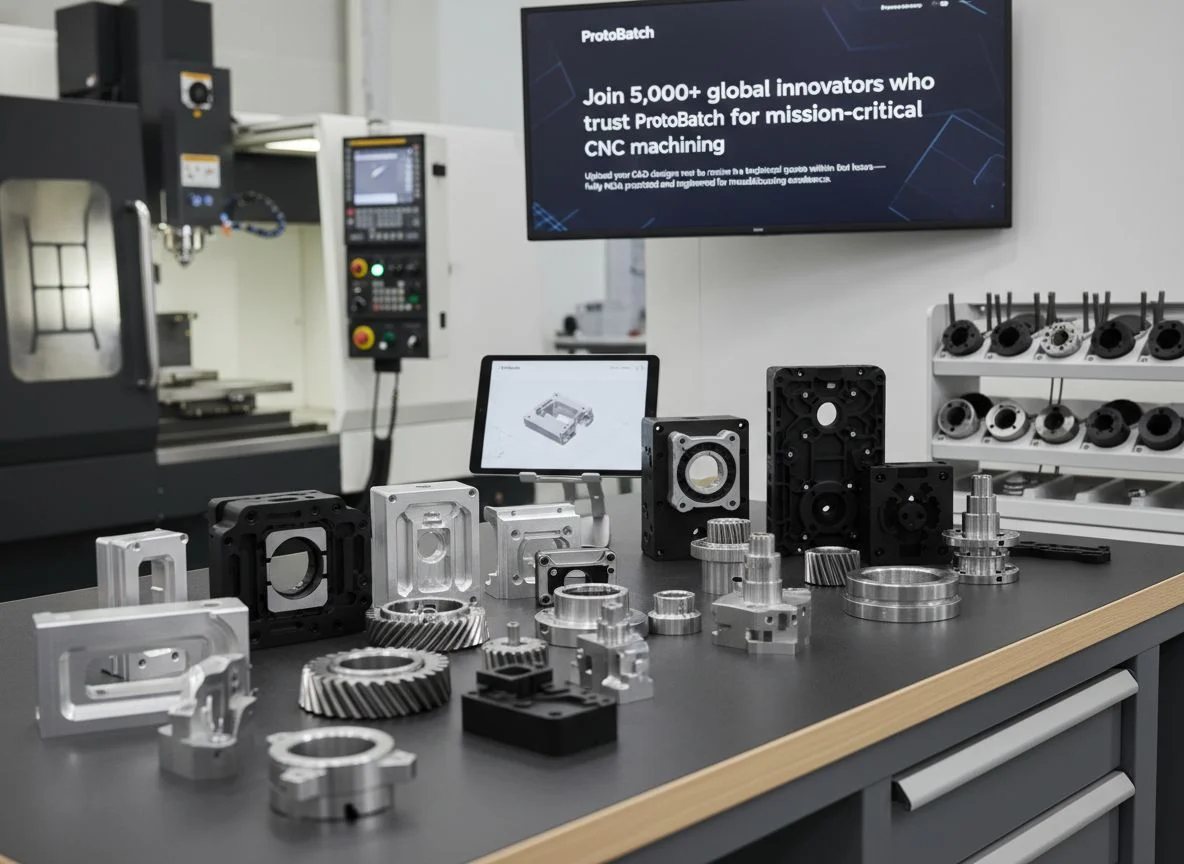

Where Complex Designs Meet Precision Reality
Browse our CNC Parts Portfolio. From Aerospace Impellers to Medical Micro-Screws, explore how our 5-Axis Capabilities and Strict Quality Control deliver high-performance machined components. Learn more about our expertise.
Aerospace Lightweighting Challenge
Discover how ylc-machining delivers airworthy precision, achieving ±0.005mm tolerances through advanced 5-axis impeller machining and thin-wall aluminum component engineering in the aerospace sector.

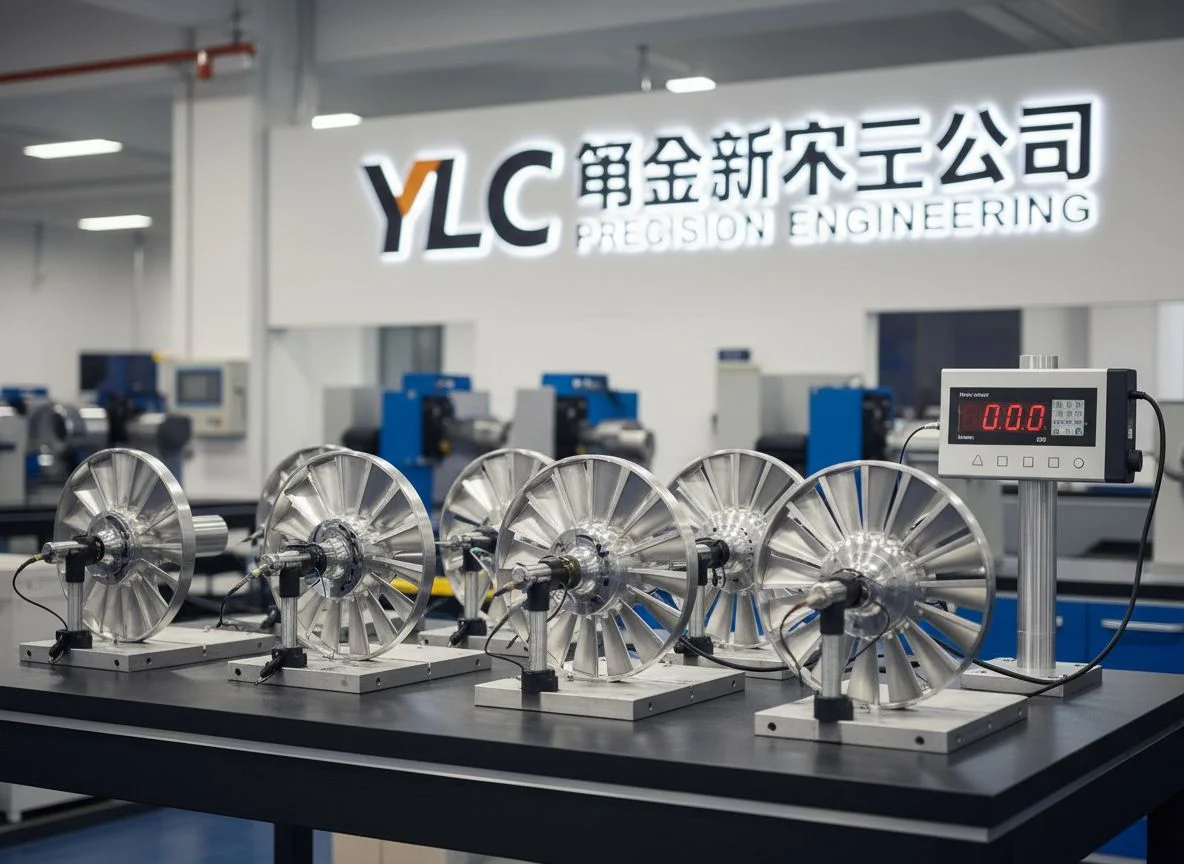

5-Axis Impeller: Mastering Thin-Wall Geometry
The Challenge: A drone manufacturer required an Aluminum 7075 turbofan impeller with blades just 0.5mm thick, requiring perfect Dynamic Balance and zero thermal deformation.
The Solution: Utilizing our Hermle 5-Axis Center and Trochoidal Milling strategies, we minimized cutting forces and vibration to achieve structural integrity at a fraction of the weight.
Engineered for Flight Performance
30% Weight Reduction
Specialized 0.5mm thin-wall aluminum parts achieving 40% higher strength-to-weight ratios in drone components.
$pm 0.005$mm Precision
±0.001mm tolerance adherence ensures 99.9% dependable performance for high-RPM aerospace assemblies.
Ra 0.4 Surface Finish
Advanced 5-axis CNC toolpaths achieve 0.4μm Ra aerodynamic finishes directly from the machine tool.
Medical Case Study

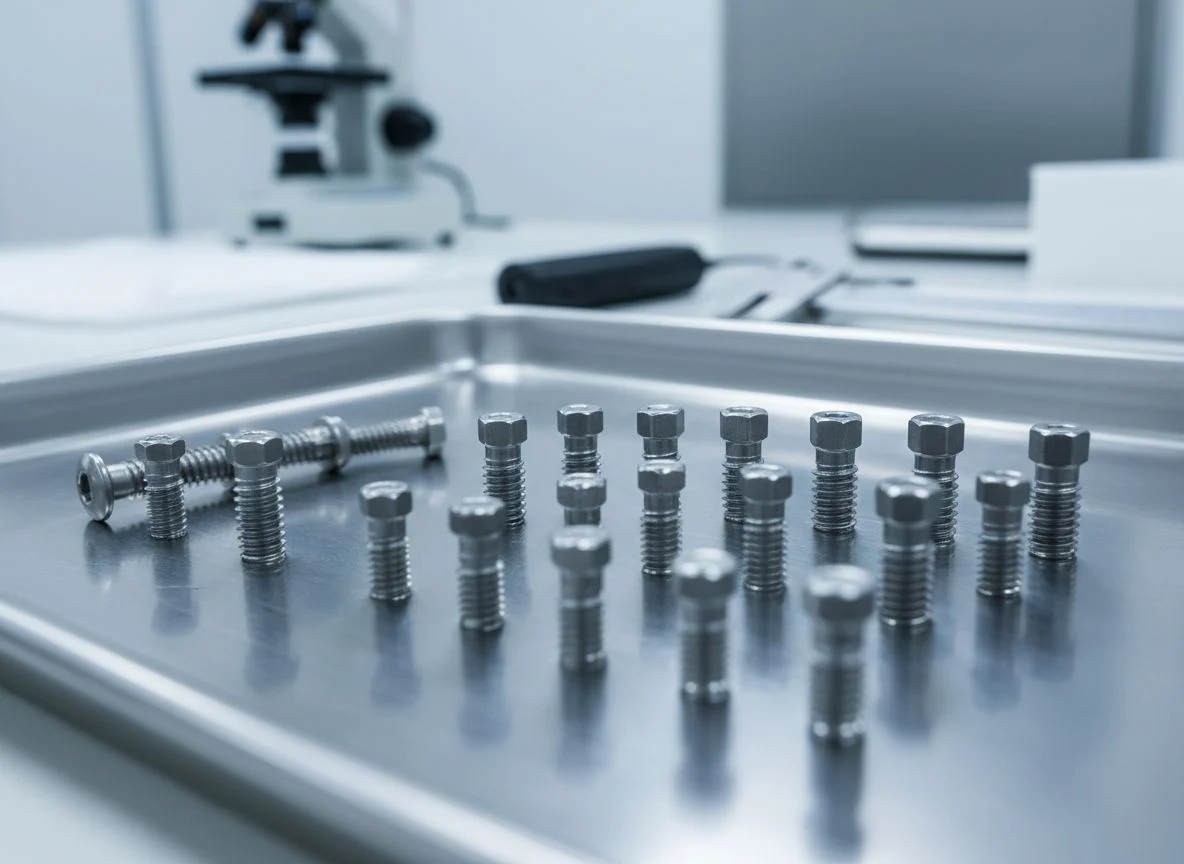

Titanium Implant Micro-Machining
Achieving zero-defect Swiss turning for Titanium Grade 5 bone screws through advanced thread whirling and micro-machining technologies.
The Challenge
A leading medical OEM required high-precision bone screws with a 2mm diameter. The project utilized Titanium Grade 5—a notoriously difficult material to machine without compromising surface integrity.
The specifications demanded micron-level thread accuracy and a strictly burr-free finish to ensure biocompatibility and prevent post-surgical complications.
Key requirements included ultra-tight tolerances of ±0.005mm and 100% compliance with stringent medical-grade quality standards.
Our Solution
Swiss Turning & Whirling
Utilizing Star Swiss Lathes and thread whirling units to generate precision threads in a single pass with Ra 0.4 superior surface finishes.
50x Micro-Inspection
Automated video measuring systems and high-magnification microscopy ensure 100% burr-free edges and ±0.001mm dimensional consistency.
Validated Bio-Cleaning
Implemented 5-stage ultrasonic cleaning and vacuum packaging to meet ISO 13485 medical-grade cleanliness requirements.å
The Implementation Process
- 1
Conducted specialized DFM for micro-threads, selecting optimal tool geometries for Titanium Grade 5 to prevent work hardening.
- 2
Engineered custom sub-spindle pick-off strategies to eliminate witness marks and maintain micron-level concentricity.
- 3
Applied thread whirling technology to achieve Ra 0.4 surface roughness directly from the machine, bypassing secondary polishing.
- 4
Provided full FAI (First Article Inspection) and material certification, ensuring 100% traceability for medical compliance.
Project Highlights
100%
Thread Gauge Pass Rate
±0.005mm
Dimensional Tolerance
Zero
Visible Burrs (50x)
40%
Production Cycle Savings

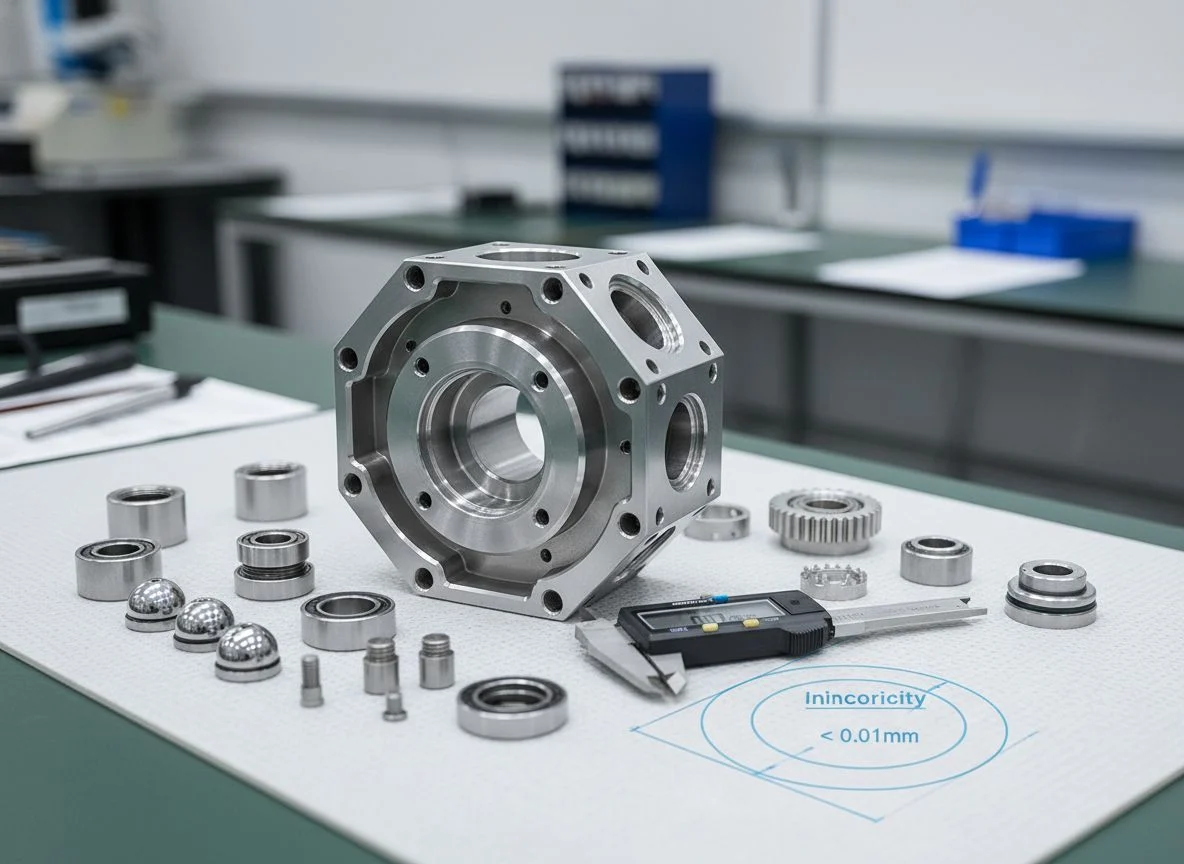

Case Study: Robotics - Solving the Geometry Puzzle
The Challenge: A leading robotics firm required a Joint Housing with 6-sided complex features and a concentricity requirement of < 0.01mm to ensure fluid arm articulation.
The Solution: Engineers utilized Horizontal Machining Centers (HMC) with multi-station fixtures. This reduced setup times by 40%, eliminated cumulative errors, and mastered complex internal cavities with 100% precision.
The Result: We achieved 100% batch consistency, ensuring seamless integration with harmonic reducers and a 25% improvement in final assembly efficiency.
Complex Geometry
Expertise in 5-axis and multi-sided machining for intricate robotic joint housings and structural frames.
Micron Precision
Maintaining tight concentricity and position tolerances to ensure zero-friction robotic movement.
Reliable Consistency
Rigid QC protocols ensure that every part in a high-volume run fits the assembly perfectly every time.
Material Gallery: Mastering Hard Metals & Engineered Plastics

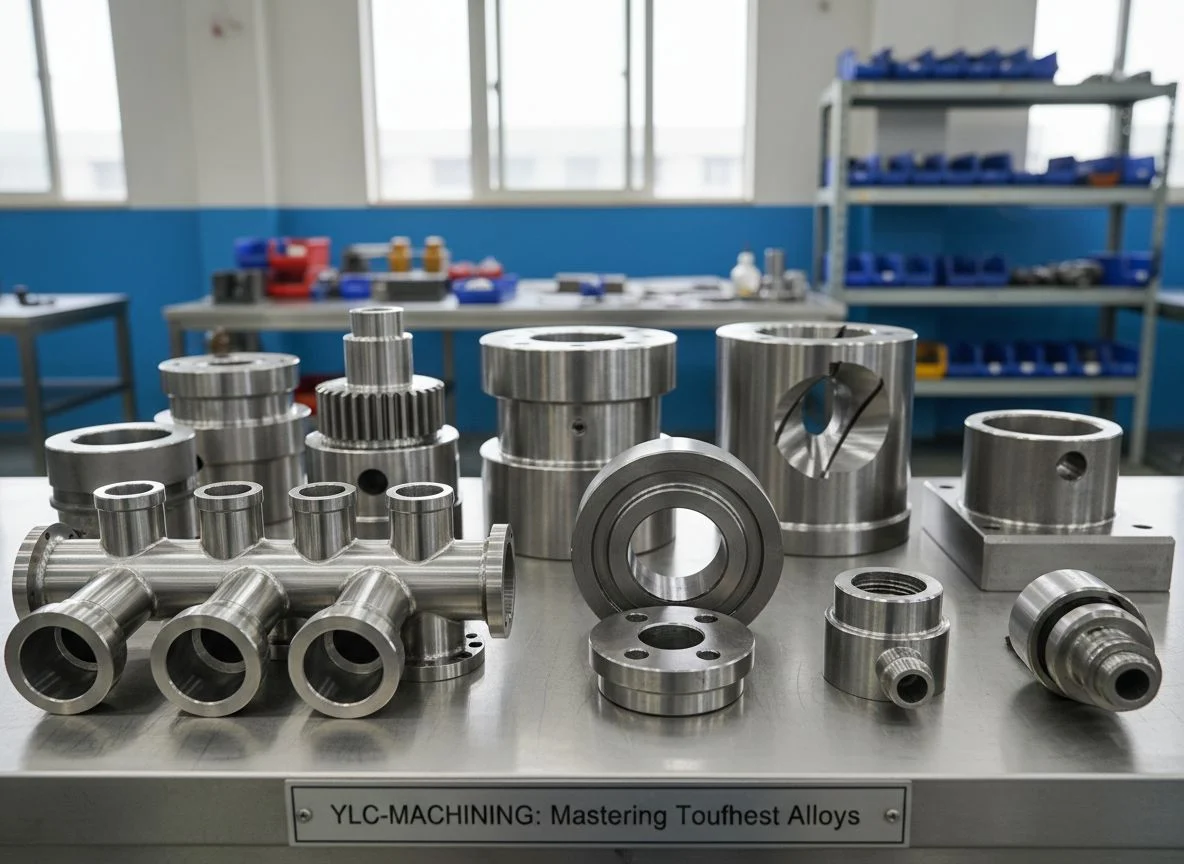

Hard Metals: Heavy-Duty Industrial Precision
From Stainless Steel 316L manifolds to hardened tool steel dies, we master the toughest alloys. Our hard turning examples showcase exceptional heat resistance and structural integrity, ensuring tight tolerances for demanding aerospace and industrial environments.
High-Performance Polymers & Composites
Achieve optical clarity with Polycarbonate lenses or mechanical precision with Delrin gears and PEEK implants. Our plastic machining gallery highlights burr-free finishes and dimensional stability critical for medical and semiconductor applications.

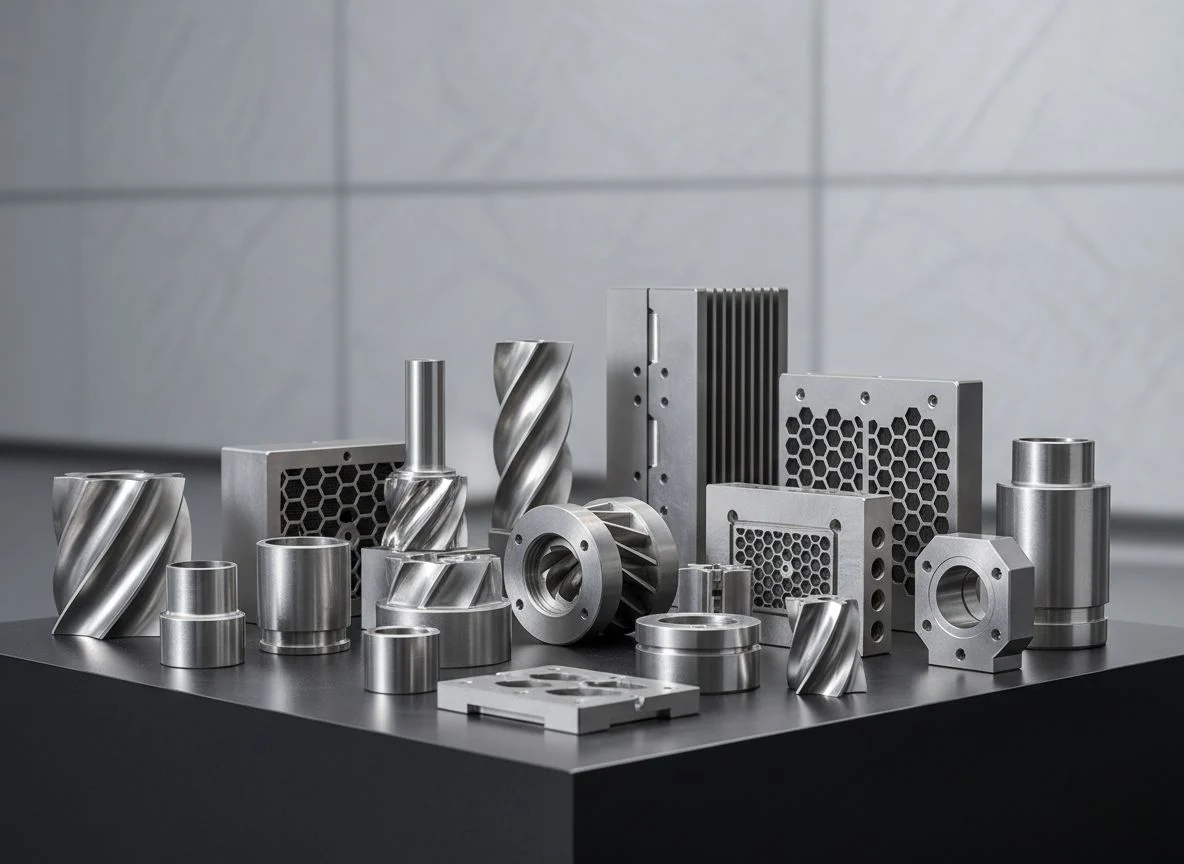

Stainless Steel Machining
High-resolution photos of corrosion-resistant components with Ra 0.4 surface finishes and complex geometries.

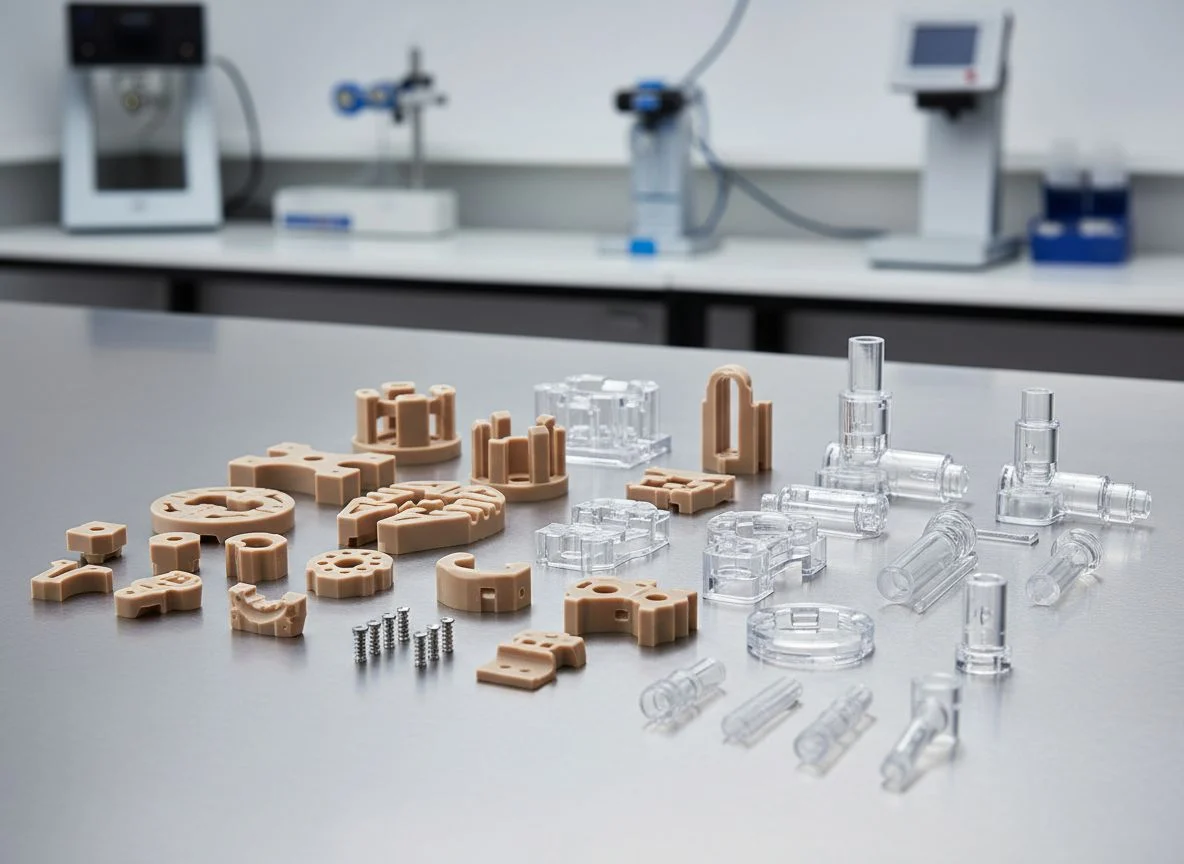

PEEK & High-Tech Plastics
Showcasing PEEK parts and clear plastic machining examples designed for biocompatibility and lightweight performance.

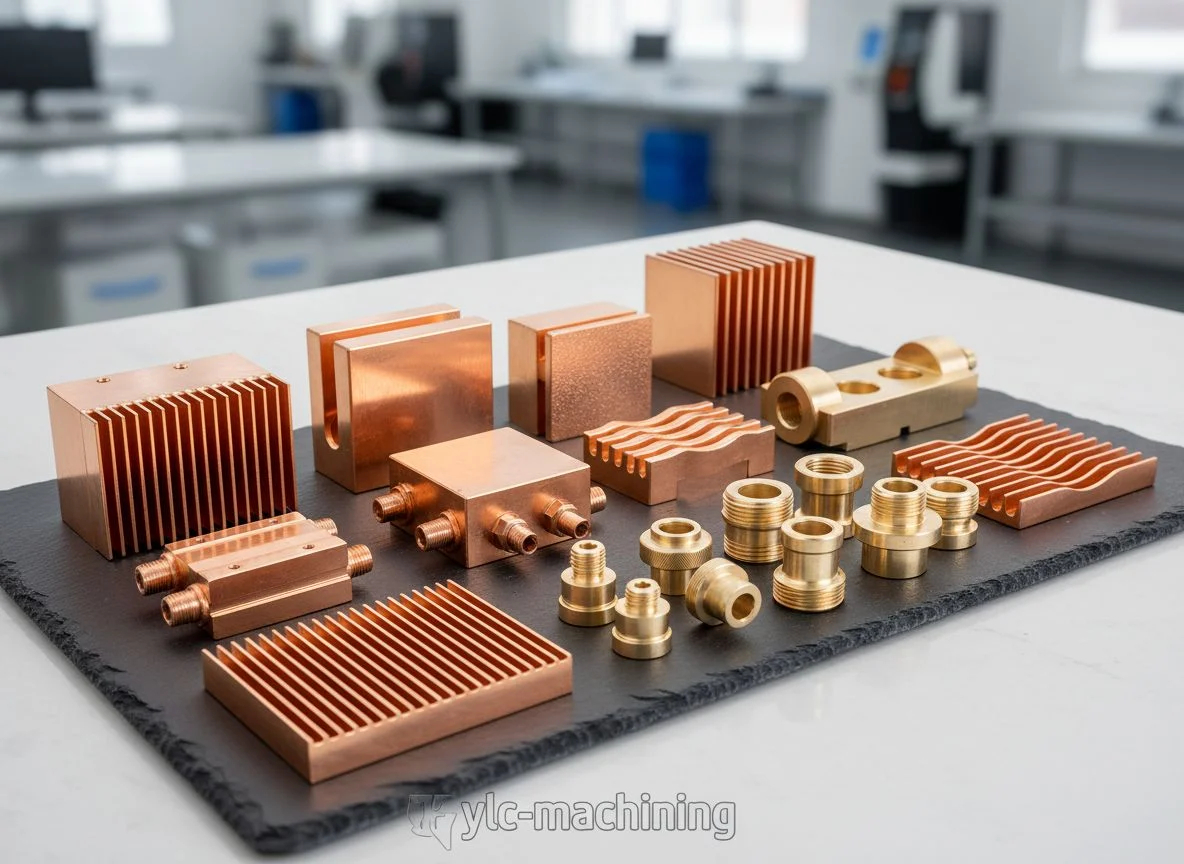

Copper & Brass Gallery
Explore our copper heatsink gallery and brass turned parts photos, optimized for thermal and electrical conductivity.
Surface Finish Gallery: Aesthetics Meets Engineering Function
Explore the ProtoBatch surface finish gallery, showcasing how our CNC finishing options transform raw components into high-performance parts. Our comprehensive finishing services range from anodized aluminum gallery displays to mirror finish polishing, providing the protective and cosmetic parts photos that prove our commitment to quality.

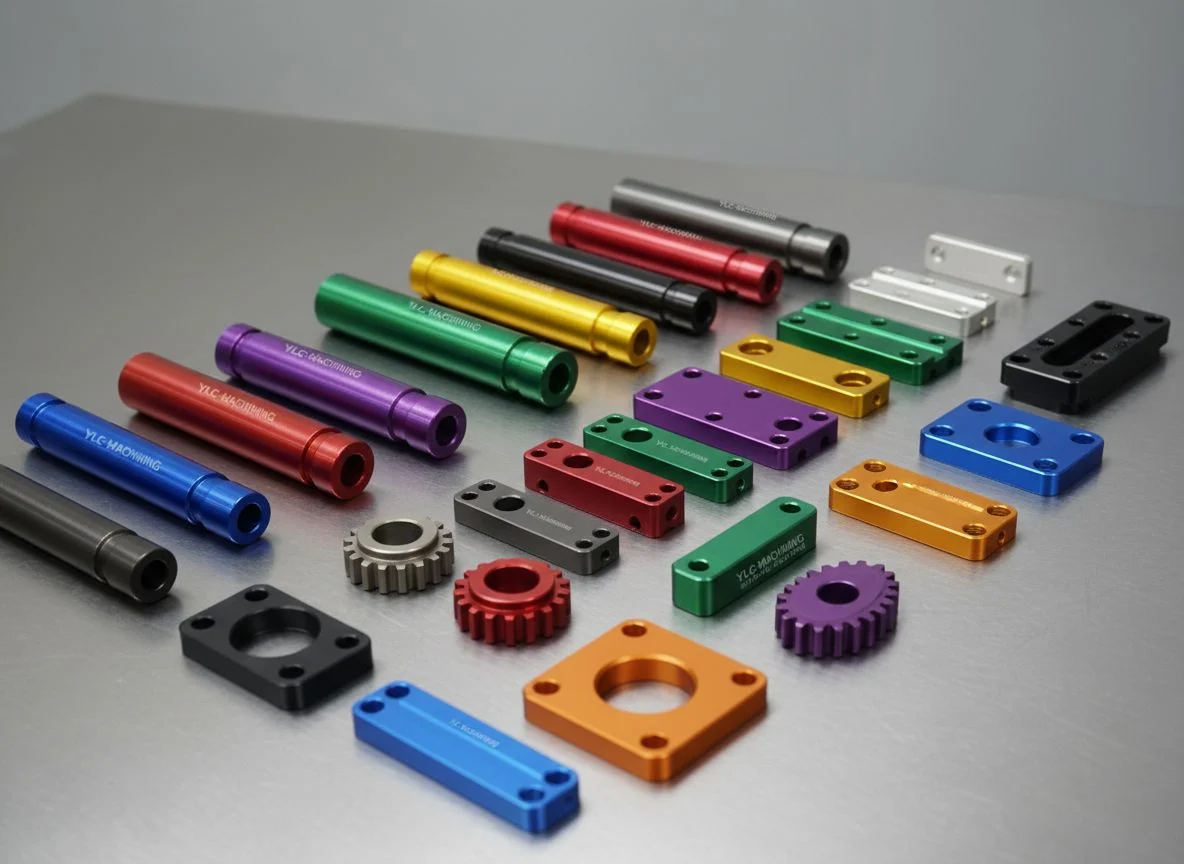

Anodizing & Color Coatings
Browse our anodized aluminum gallery to see how we achieve uniform color, surface hardness, and corrosion resistance for electronic enclosures and aerospace brackets.
Functional Plating & Protection
These plated parts photos showcase gold, nickel, and zinc coatings designed to enhance electrical conductivity and provide superior wear protection for critical components.

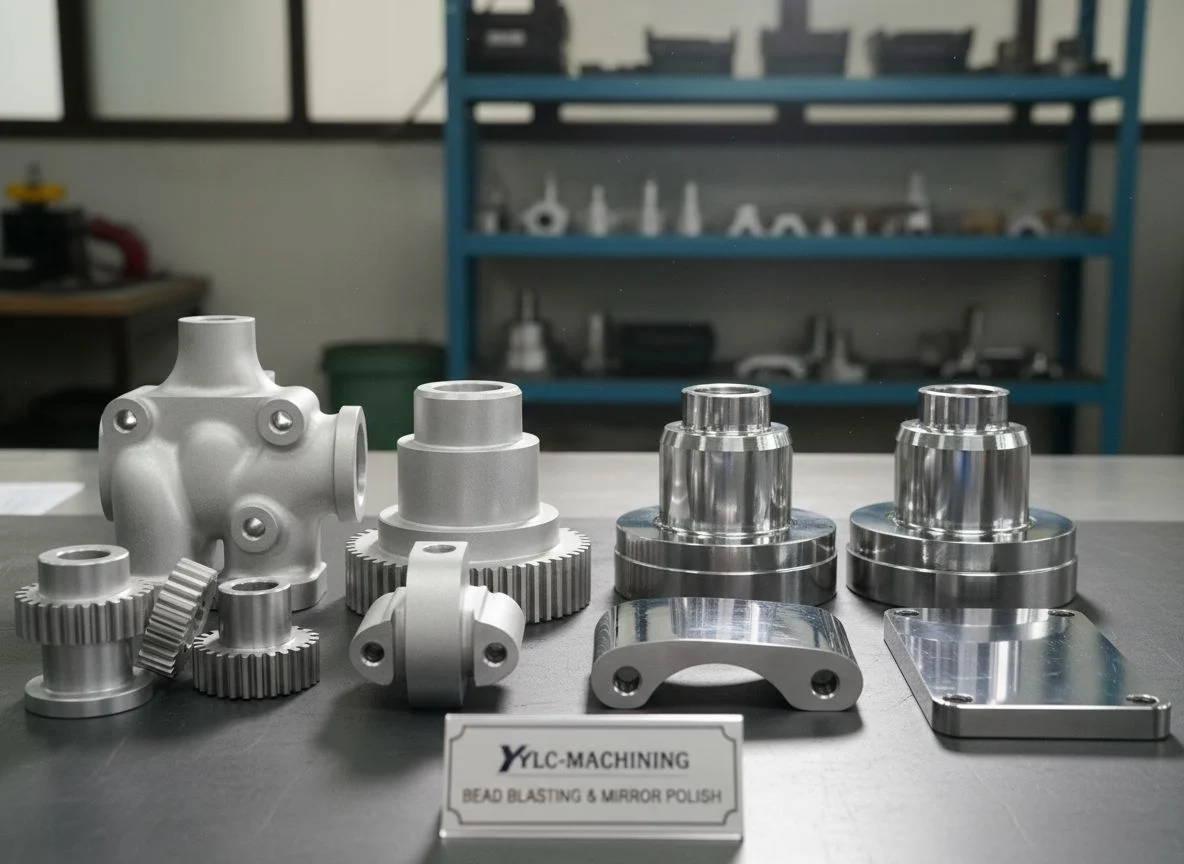

Bead Blasting & Mirror Polish
From bead blast finish examples with a refined matte texture to high-precision mirror finish polishing, we deliver the exact Ra values your design demands.

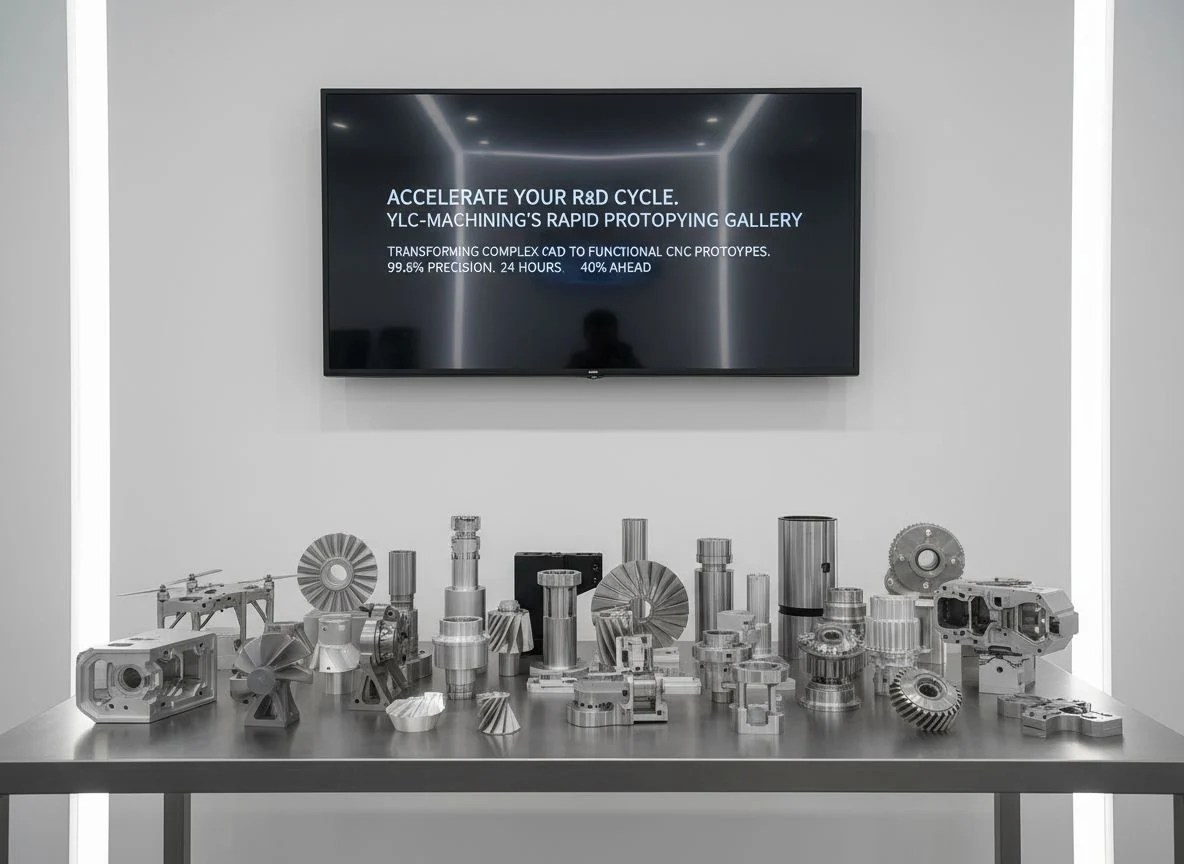

Rapid Prototyping Gallery: The Velocity of Precision
Accelerate your R&D cycle with ylc-machining’s rapid prototyping gallery. We specialize in transforming complex CAD files into functional CNC machined prototypes with 99.8% precision in 24 hours, ensuring your design validation stays 40% ahead.

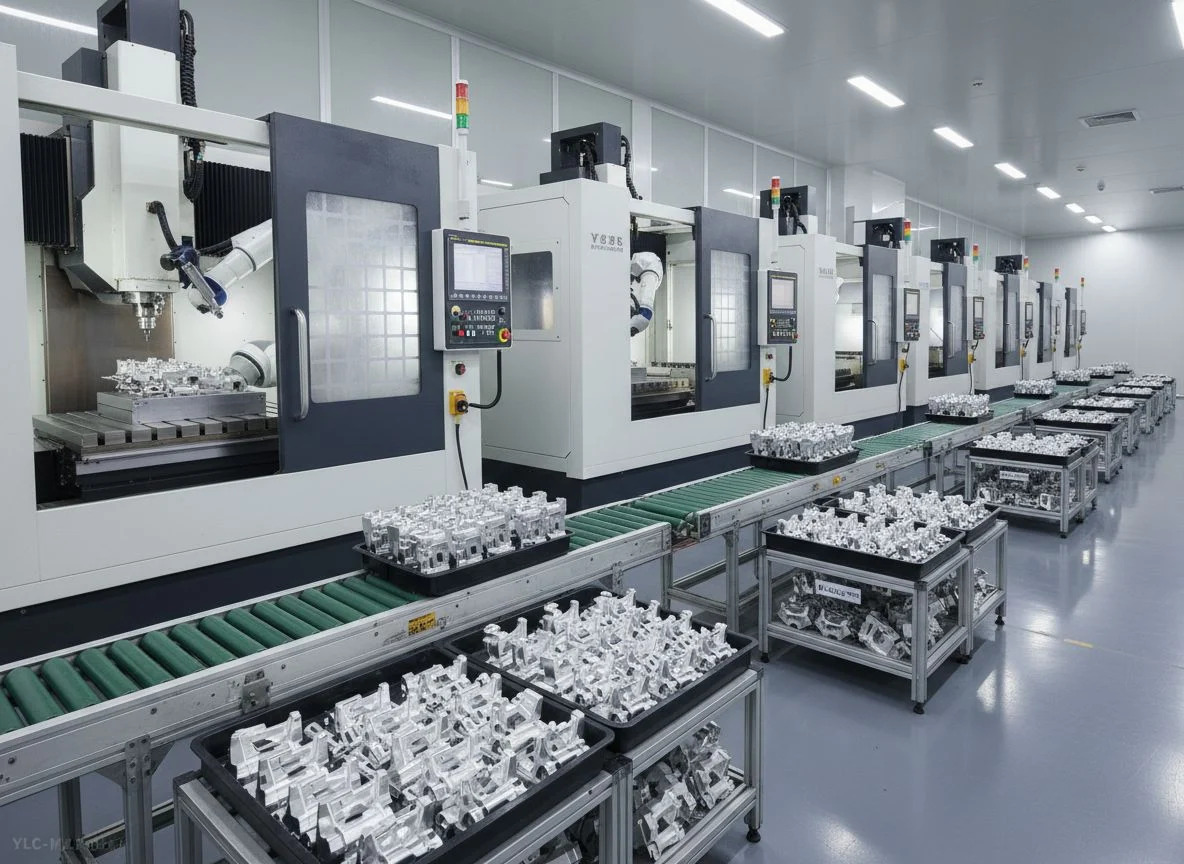

Mass Production: Scaling to High Volumes
Seamlessly scale from prototype to high-volume CNC manufacturing with ylc-machining. We maintain ±0.001mm tolerances across 50,000+ unit runs using 24/7 robotic workcells, reducing costs by 20% and ensuring a resilient, cost-effective global supply chain.
- Automated CNC batch manufacturing for consistent part integrity
- Optimized cycle times for efficient high-volume production
- Full traceability and 99.8% acceptance rates on mass production runs

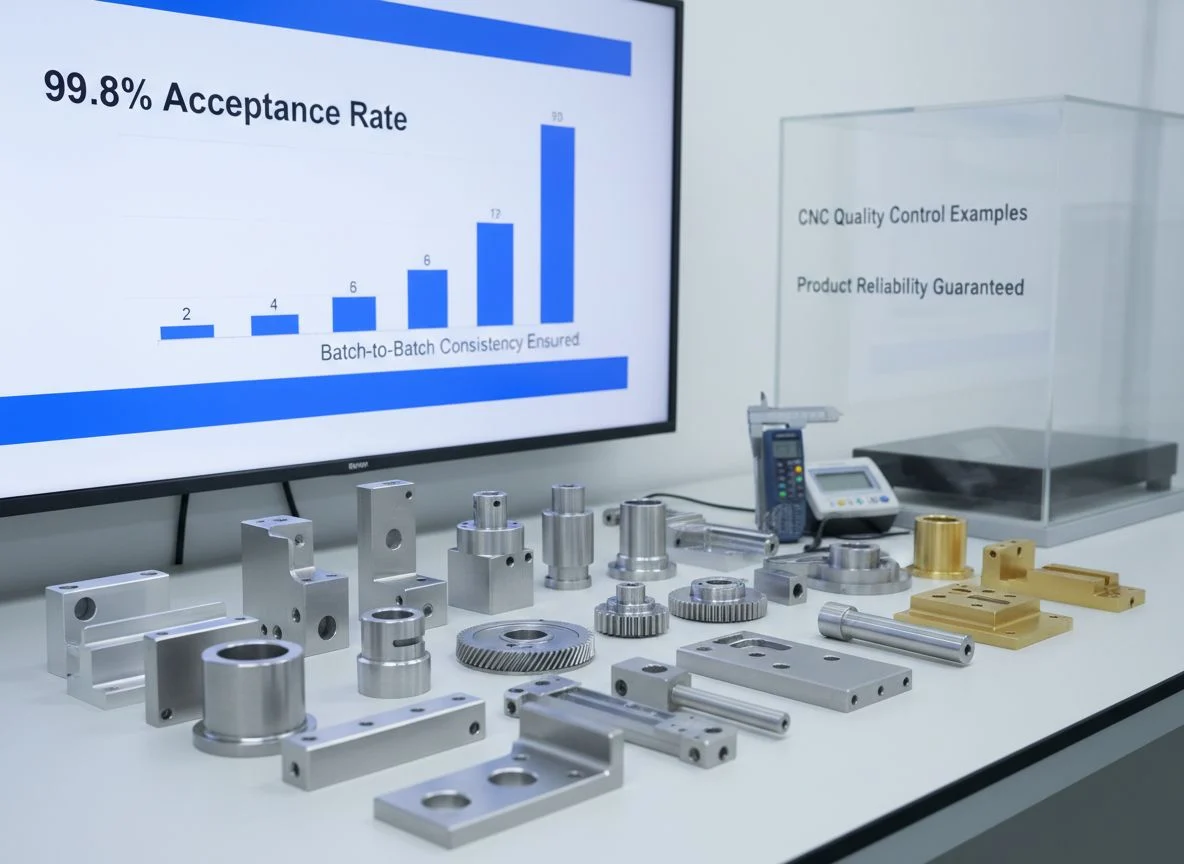

The Invisible Quality: Precision Inspection & Verification
Beyond visual inspection, our quality inspection photos capture the rigor of our metrology lab. Validating complex geometries and micro-tolerances with Hexagon CMM probes and high-resolution Video Measuring Systems, ensuring your designs are executed with 100% fidelity.
Providing the "Visual Proof" required by global engineers. From FAI Reports to Material Certs, our detailed documentation ensures full traceability and strict compliance for mission-critical Aerospace, Medical, and Robotics components.
Our CNC quality control examples demonstrate a commitment to excellence, resulting in a 99.8% acceptance rate, minimizing your supply chain risk and ensuring batch-to-batch consistency. Learn more about our quality assurance processes to guarantee product reliability.

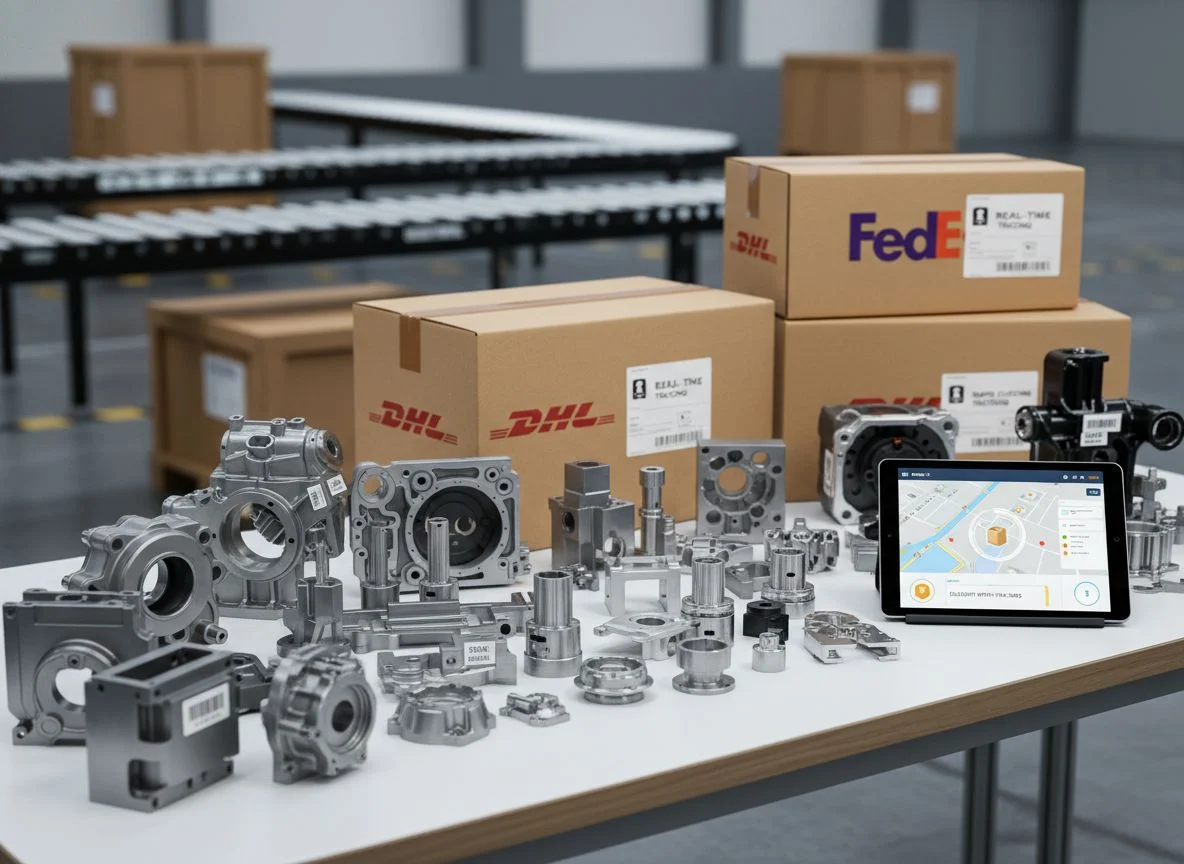

Precision Packaging & Global Logistics
Protecting your investment from our spindle to your assembly line with export-grade packaging and reliable shipping.
Custom-Engineered Protection
We utilize vacuum sealing for copper components to prevent oxidation and custom-cut EPE foam inserts for anodized parts to eliminate surface scratches. Our export crating ensures even the most delicate thin-walled parts survive long-haul transit.
Expedited Global Delivery
Time-to-market is critical. We partner with tier-1 carriers like DHL and FedEx to provide real-time tracking and rapid customs clearance, ensuring your CNC prototypes and production batches arrive within days, not weeks.
Ready-for-Use Assurance
Quality control extends to the final seal. Every shipment includes a comprehensive documentation pack, including FAI reports and material certifications, so your components are ready for immediate inspection and integration.
Ready to See Your Precision Parts Here?
Join 5,000+ global innovators who trust ProtoBatch for mission-critical CNC machining. Upload your CAD designs now to receive a technical quote within 2 hours—fully NDA protected and engineered for manufacturing excellence.
