YLC Machining: CNC Factory Scale – Our Precision Engineering Standards

1. Overview: Our Approach at YLC Machining

At YLC Machining, we define “CNC Factory Scale” not merely by the square footage of our Shenzhen facility, but by the measurable synergy between our 21+ high-precision CNC centers, our 80+ specialized staff, and a rigorous ISO 9001:2015 quality framework. Since our establishment in 2012, we have focused on a mid-to-large scale operational model that bridges the gap between rapid prototyping and high-volume industrial production.

What is this process? For YLC Machining, managing factory scale involves the strategic synchronization of 3-axis, 4-axis, and 5-axis CNC machining capabilities to meet diverse client demands. It is the systematic application of technical resources—ranging from material spectrometer verification to CMM-backed metrology—ensuring that whether we produce 10 or 10,000 units, the dimensional integrity remains constant. We do not view scale as a means to sacrifice quality for quantity; rather, we use our scale to implement redundant quality checks and specialized machining cells that smaller shops cannot sustain.

Scope Our scaling operations encompass the entire production lifecycle within our Shenzhen plant. This includes:

• Prototyping Department: Rapid turnaround (5-7 working days) using 3-axis and 4-axis machines.
• Small Batch Production: 100-500 piece runs with a 10-15 day lead time.
• Mass Production: 1,000+ piece orders utilizing optimized tool paths and automated inspection intervals.
• Surface Treatment Coordination: Managing internal and audited external processes for anodizing, plating, and coating.

Responsible Person The management of our factory scale is overseen by our Production Planning Department (PPD) in direct coordination with the Quality Assurance (QA) team. The PPD ensures machine load balancing, while the QA team manages the IPQC (In-Process Quality Control) cycles to maintain a 99.8% first-pass yield.

Our Capability We maintain a consistent precision of ±0.01mm for standard orders and can achieve ±0.005mm for high-precision requirements. Our facility is equipped to handle a wide array of materials, including Aluminum (6061-T6, 7075-T6), Stainless Steel (304, 316L), and Titanium (Grade 5). By maintaining a machine-to-operator ratio that allows for constant monitoring, we ensure that our scale serves the precision requirements of the medical, aerospace, and automotive sectors.

2. Trigger Conditions: When YLC Machining Initiates

YLC Machining initiates its scaling protocols based on specific technical and volume-based triggers. We do not apply a “one-size-fits-all” approach; instead, we analyze the following criteria before committing resources:

1. Volume Thresholds: When an order exceeds 100 units, we transition from our “Prototype Cell” to our “Production Cell.” This involves a shift from manual setup to dedicated jig and fixture design to ensure repeatability.
2. Complexity Analysis: If a part requires simultaneous 5-axis movement or tolerances tighter than ±0.01mm, we trigger our “High-Precision Protocol.” This allocates our 5-axis CNC machines (3 units) and schedules Zeiss/Hexagon CMM inspections at 1-hour intervals.
3. Material Sensitivity: Orders involving Titanium Grade 5 (TC4) or PEEK trigger specialized tool-wear monitoring protocols due to the material’s impact on machine calibration over long runs.
4. Lead Time Requirements: For “Rush” orders (3-5 working days), YLC Machining initiates a dual-shift operation, utilizing our 80+ staff members to ensure 24-hour machine uptime.
5. Regulatory Compliance: Any medical or aerospace project triggers our “Traceability Protocol,” requiring full MTR (Material Mill Test Reports) and serialized OQC (Outgoing Quality Control) documentation.

3. Our Process Steps & Technical Mastery: Data-Driven Results

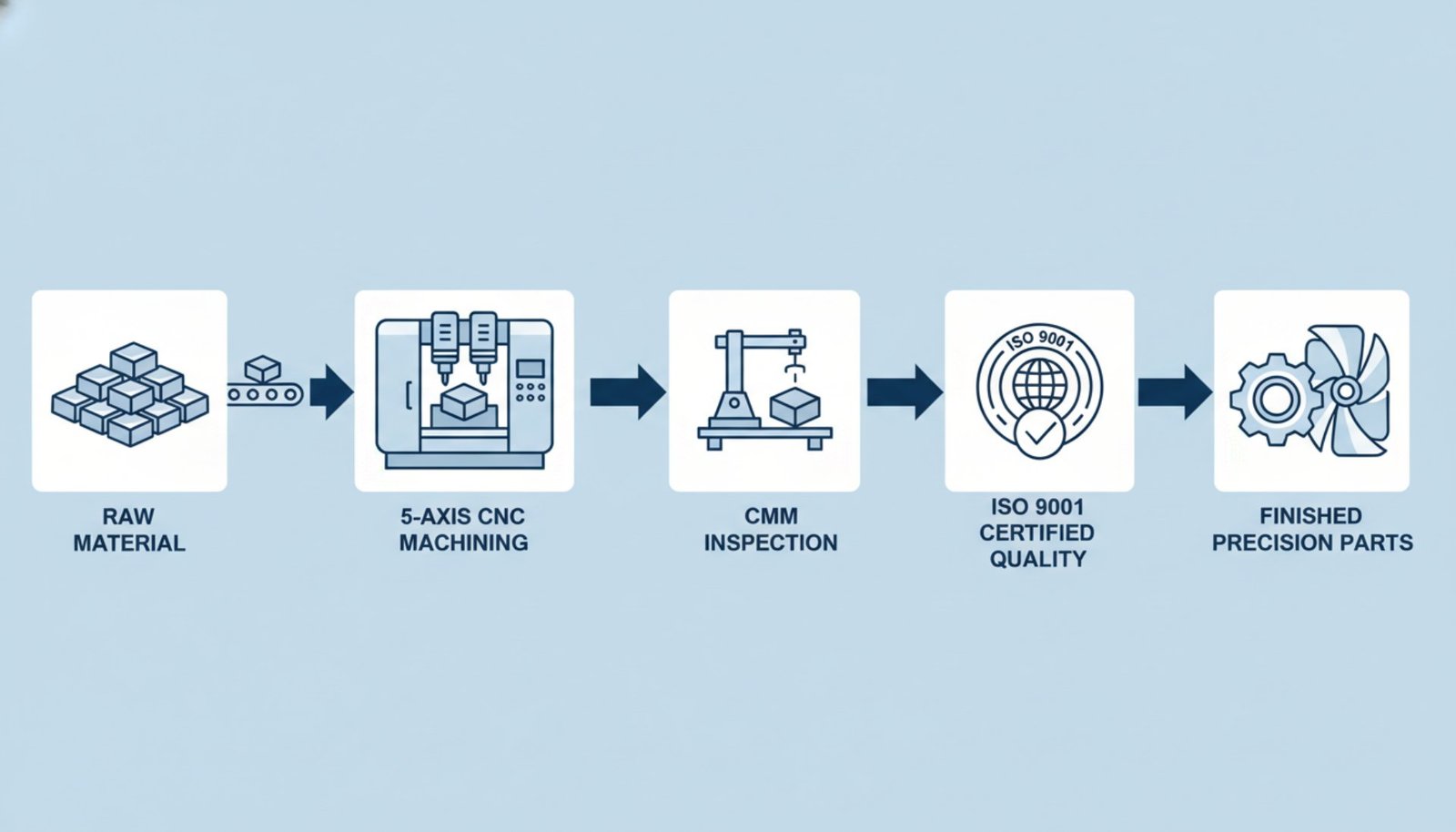

Step 1: Resource Planning and IQC (Incoming Quality Control)

Before a single machine is powered on, our factory scale allows us to perform exhaustive material verification. We do not rely solely on supplier documentation.

• Operation: Every batch of raw stock (Aluminum, Stainless, Titanium) is subjected to spectrometer analysis to verify chemical composition.
• Tools/Forms: Handheld Spectrometer, Material Mill Test Report (MTR).
• Output: Verified material log for the production file.
• Achievable Effect: This prevents the 2-3% failure rate common in the industry caused by “out-of-spec” raw materials, ensuring the final part meets the mechanical properties required by the client.

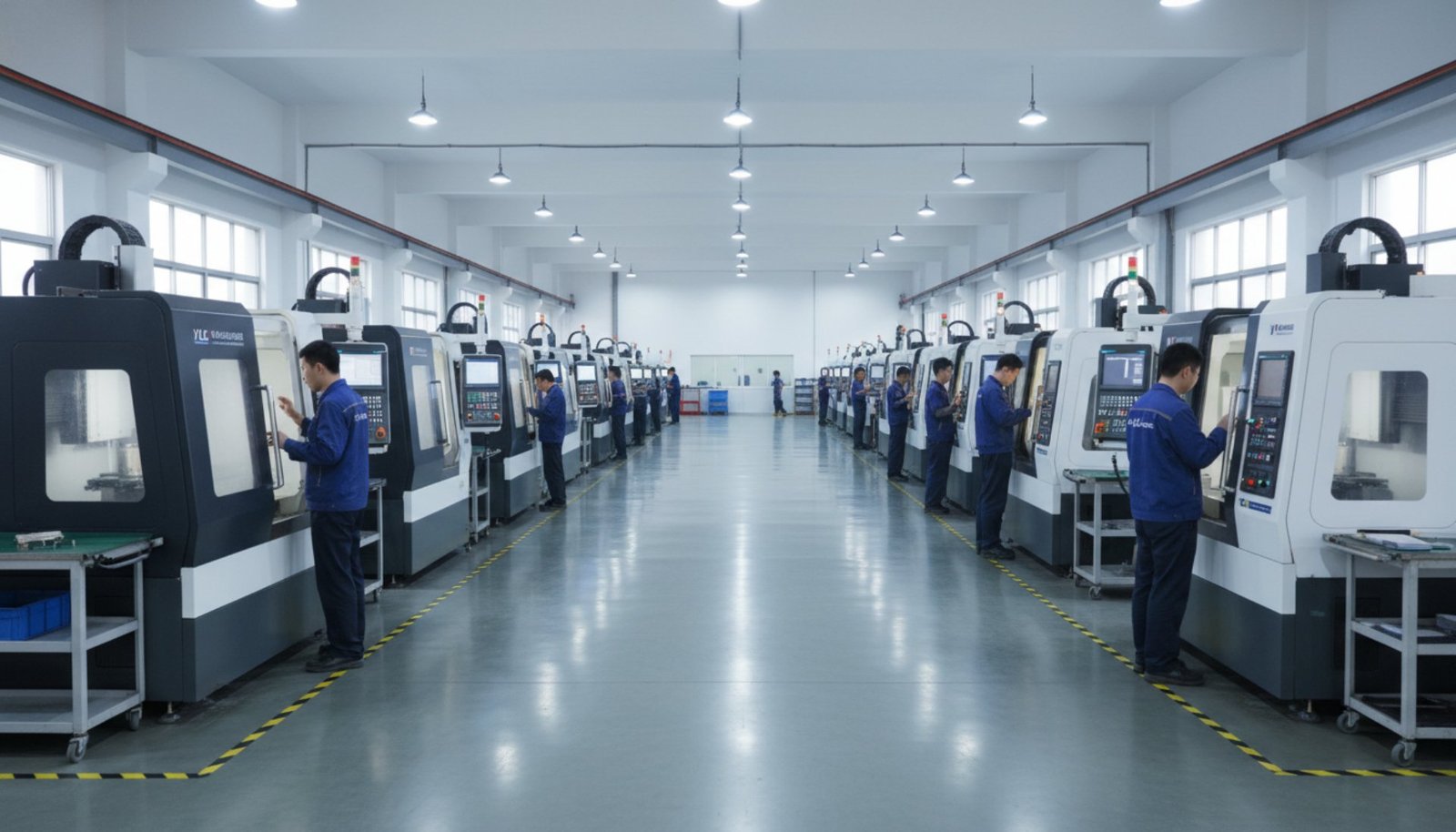

Step 2: CNC Programming and Tool Path Optimization

With 21 machines, we have the scale to dedicate specific programmers to specific machine types.

• Operation: Our engineers use Mastercam or SolidCAM to develop tool paths optimized for either “Speed” (for prototypes) or “Stability” (for mass production). For production runs, we incorporate “Tool Life Management” software.
• Tools/Forms: CAM Software, Tool Offset Logs.
• Output: G-code optimized for ±0.005mm precision.
• Achievable Effect: By optimizing tool paths, we reduce cycle times by 15-20% while maintaining a surface finish of Ra 0.8μm to 1.6μm without secondary polishing.

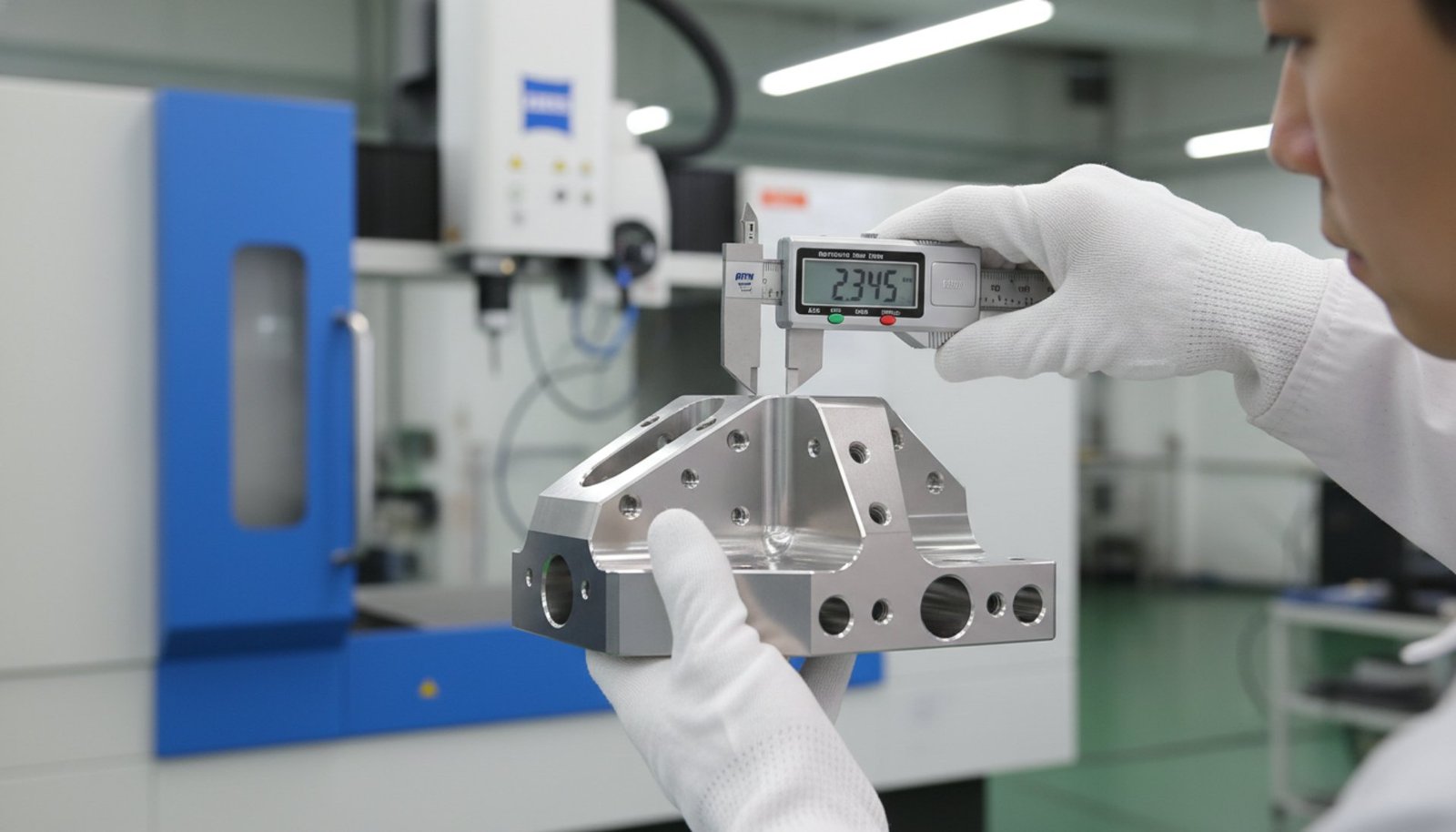

Step 3: First Article Inspection (FAI) and Machine Calibration

Our scale allows us to maintain a dedicated metrology lab that operates independently of the production floor.

• Operation: The first part off the machine is cleaned and moved to our climate-controlled CMM room. We measure all critical dimensions, including GD&T (Geometric Dimensioning and Tolerancing) per ISO 2768.
• Tools/Forms: Hexagon/Zeiss CMM, FAI Report.
• Output: Signed-off FAI report allowing the production run to commence.
• Achievable Effect: We achieve a 100% success rate on FAI before mass production begins, eliminating the risk of large-scale scrap batches.

Step 4: IPQC (In-Process Quality Control) and Patrol Inspection

Scaling production requires constant vigilance. We do not wait until the end of the day to check parts.

• Operation: Our IPQC technicians perform “Patrol Inspections” every 2 hours. We use an AQL (Acceptable Quality Level) of 0.65 for critical dimensions.
• Tools/Forms: Optical Comparators, Roughness Testers (Ra), IPQC Inspection Log.
• Output: Real-time data logs tracking dimensional drift.
• Achievable Effect: This rigorous monitoring allows us to detect tool wear before it exceeds ±0.01mm, maintaining a defect rate below 500 PPM (parts per million).

Step 5: Surface Treatment and Secondary Operations

YLC Machining manages the logistical scale of finishing within our quality umbrella.

• Operation: Parts are moved to specialized areas for sandblasting (120/180/220 grit), anodizing (Type II/III), or laser engraving.
• Tools/Forms: Coating Thickness Gauges, Gloss Meters.
• Output: Finished parts ready for final inspection.
• Achievable Effect: We maintain strict control over anodizing thickness (5-25μm for Type II), ensuring that threaded holes and mating surfaces remain within tolerance after treatment.

Step 6: OQC (Outgoing Quality Control) and Documentation

The final step of our factory scale process is the 100% inspection of critical features.

• Operation: Every part undergoes a final cosmetic inspection under 500-lux lighting. Critical dimensions are re-verified.
• Tools/Forms: Certificate of Conformance (COC), Full Dimensional CMM Report.
• Output: Packaged parts with a complete documentation trail.
• Achievable Effect: This ensures that 100% of the parts arriving at the client’s facility are ready for immediate assembly, with zero need for incoming inspection on their end.

4. Precautions: How YLC Machining Ensures Perfection

Operating at scale introduces variables that smaller operations often overlook. At YLC Machining, we have engineered our processes to mitigate these risks.

Common Pitfalls in Scaled Production:

• Thermal Expansion: In a factory with 21+ machines running simultaneously, ambient temperature can fluctuate, causing a ±0.02mm drift in precision aluminum parts.
• Tool Wear: High-speed machining of Stainless 316L or Titanium Grade 5 causes rapid tool degradation that can go unnoticed in large batches.
• Communication Gaps: In a facility with 80+ staff, technical requirements can be lost during shift changes.

Our Prevention Strategy:

• Climate Control: Our high-precision machining and metrology areas are kept at a constant 22°C (±2°C) to neutralize thermal expansion.
• Automated Tool Monitoring: We utilize “Broken Tool Detection” and “Tool Life Counters” on our 4-axis and 5-axis machines. This automatically pauses the machine when a tool reaches its 95% life expectancy.
• Digital SOPs: Every workstation at YLC Machining is equipped with a digital Standard Operating Procedure (SOP). This ensures that whether a part is machined at 8:00 AM or 8:00 PM, the technician follows the exact same clamping, cooling, and inspection parameters.
• AQL 0.65 Standards: By enforcing an AQL 0.65 sampling plan, we ensure that our statistical probability of a defect reaching the customer is virtually zero.

5. Related Documents / Forms at YLC Machining

Maintaining the scale of our operations requires a “paper trail” (primarily digital) that ensures accountability and traceability. The following documents are standard for every project we undertake:
