YLC Machining: Core Advantages of CNC Machining – Our Precision Engineering Standards
1. Overview: Our Approach at YLC Machining

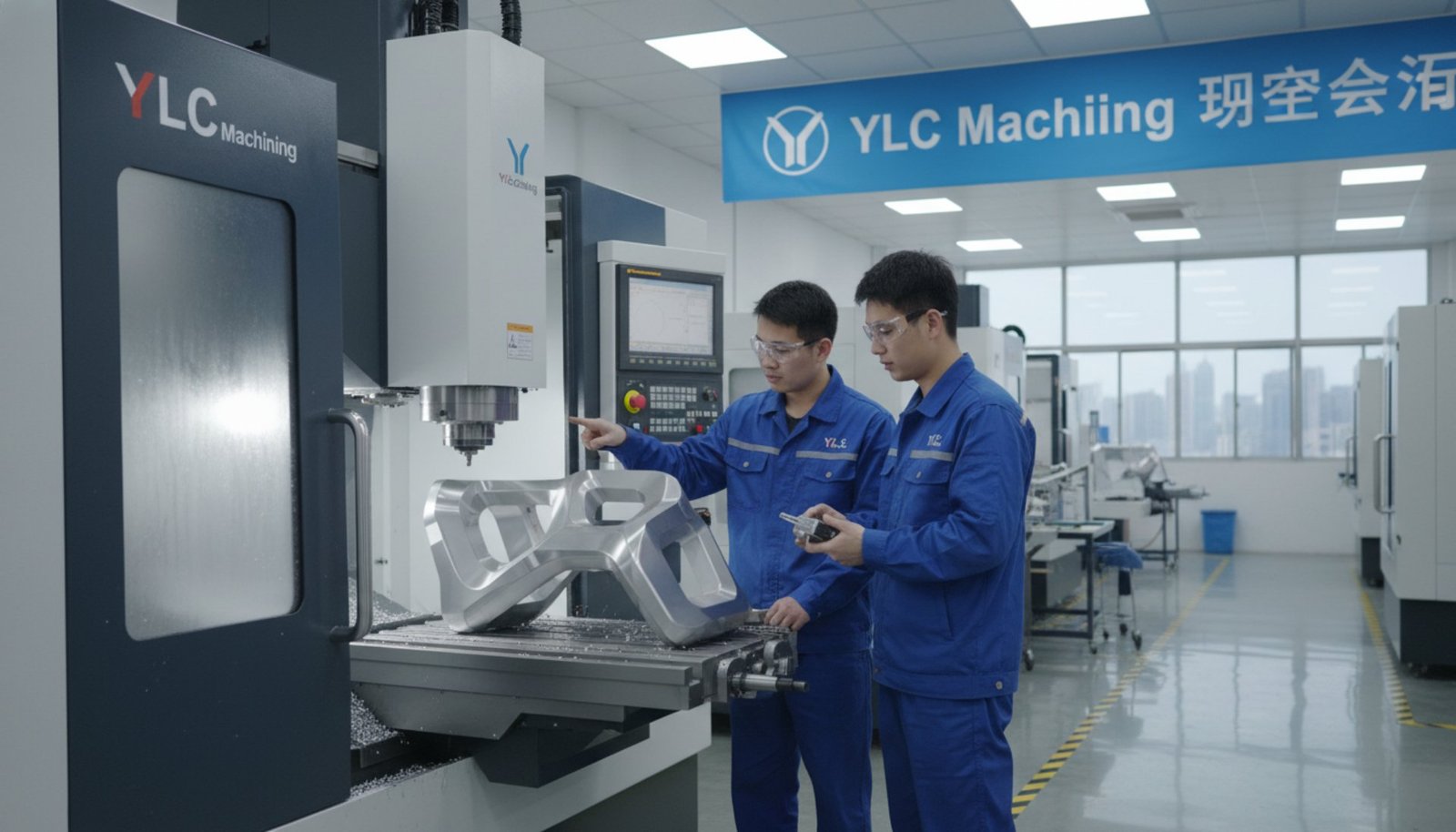

At YLC Machining, we view CNC (Computer Numerical Control) machining not merely as a manufacturing process, but as a disciplined execution of digital precision. Operating from our 80-person facility in Shenzhen since 2012, we have refined our subtractive manufacturing workflows to meet the rigorous demands of the automotive, medical, and aerospace sectors.
What is this process? CNC machining at YLC Machining involves the automated removal of material from a solid block (billet) using high-speed rotating tools. We translate CAD (Computer-Aided Design) models into G-code, which controls our 21 CNC centers with micron-level accuracy. Unlike manual machining, our process is entirely data-driven, ensuring that the 1,000th part is identical to the first.
Scope We handle everything from rapid prototyping (5-7 working days) to full-scale production runs. Our floor is equipped with 3-axis, 4-axis, and 5-axis CNC machines, allowing us to tackle geometries ranging from simple brackets to complex aerospace turbine components.
Responsible Person Our Engineering Department, led by senior CNC programmers with over 15 years of experience, oversees the initial CAM (Computer-Aided Manufacturing) setup. The Quality Department, utilizing our Hexagon and Zeiss CMMs, ensures every advantage of the CNC process is captured in the final output.
Our Capability We achieve a standard tolerance of ±0.01mm, with the ability to reach ±0.005mm on precision features. For specialized aerospace requirements, we can hit ±0.003mm following an engineering review. DATA: We maintain a 99.8% first-pass yield, significantly reducing waste and lead times for our global clientele.
2. Trigger Conditions: When YLC Machining Initiates
We initiate the CNC machining process under the following specific client requirements:
- High Dimensional Accuracy: When a project demands tolerances tighter than ±0.05mm, which traditional molding or casting cannot achieve.
- Material Integrity: When the application requires the mechanical properties of a solid wrought material (e.g., Titanium Grade 5 or Stainless Steel 316L) rather than the porous structure of 3D printing.
- Complex Geometries: When 5-axis simultaneous movement is required to reach undercut features or complex organic shapes without multiple setups.
- Surface Finish Requirements: When a functional surface needs a specific roughness, such as an Ra 0.4μm mirror finish for medical implants or Ra 0.2μm ground finish for industrial seals.
3. Our Process Steps & Technical Mastery: Data-Driven Results
Step 1: Material Verification and IQC
The foundation of CNC machining advantages lies in the raw material. At YLC Machining, we do not rely solely on supplier claims.
- Operation: Every batch of raw stock (Aluminum 6061, Titanium, etc.) undergoes IQC (Incoming Quality Control).
- Tools/Forms: We use a handheld Spectrometer to verify chemical composition and a Hardness Tester to ensure the material meets T6 or other temper specifications.
- Output: A verified Material Mill Test Report (MTR).
- Achievable Effect: DATA: By eliminating sub-standard raw materials at the gate, we reduce mid-process tool breakage by 15% and ensure 100% material traceability.
Step 2: 5-Axis Programming and Simulation

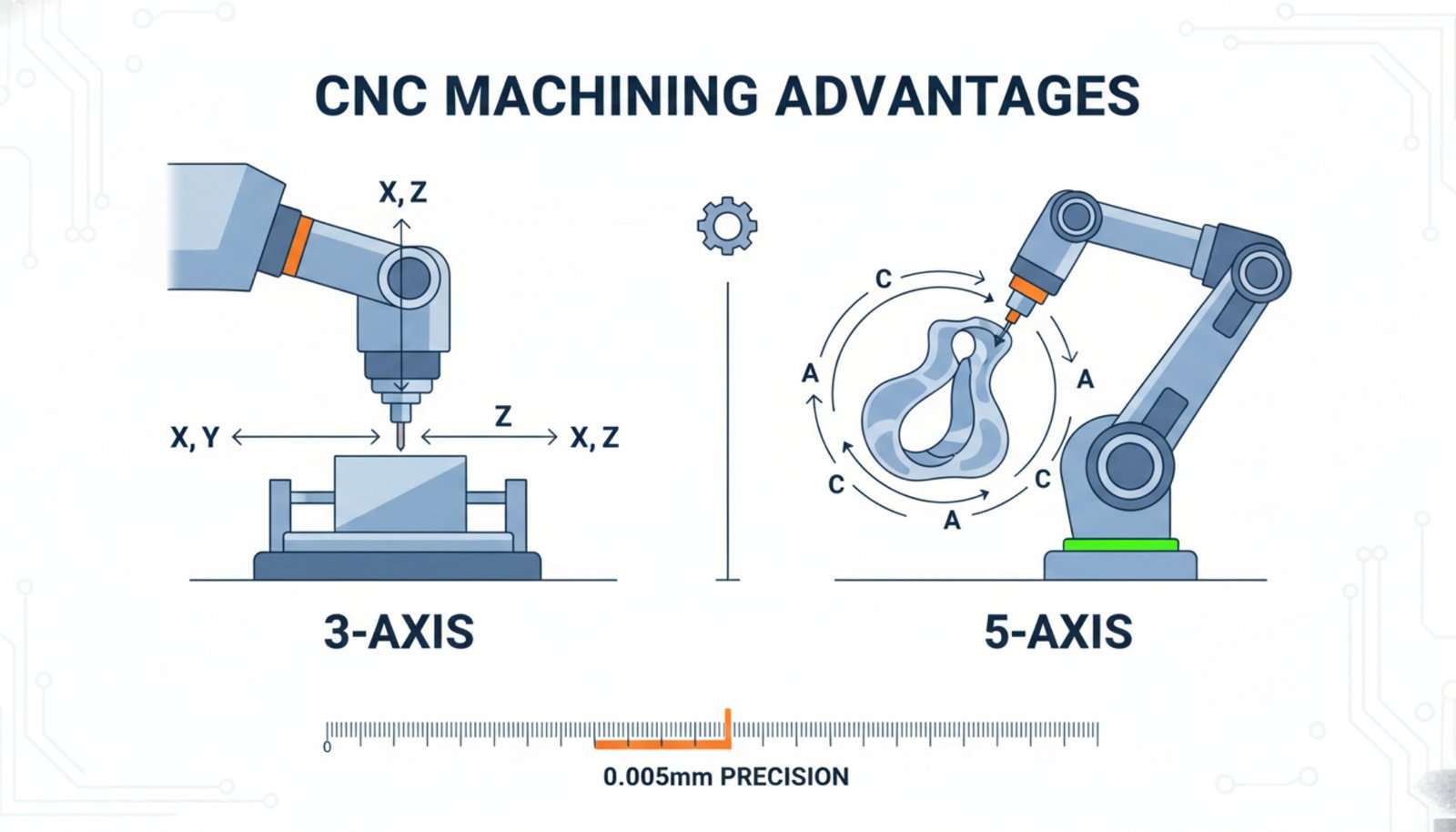

We leverage 5-axis CNC machining to minimize setups, which is a core advantage for precision.
- Operation: Our programmers use advanced CAM software to create toolpaths that optimize material removal rates (MRR) while maintaining surface integrity.
- Tools/Forms: Simulation software is used to detect potential collisions before the code reaches the machine floor.
- Output: Optimized G-code and a digital setup sheet.
- Achievable Effect: DATA: 5-axis machining reduces our setup time by 40% compared to traditional 3-axis methods, ensuring we meet our 10-15 day small-batch lead times.
Step 3: Precision Machining and Tool Wear Monitoring
The actual cutting phase is where YLC Machining’s technical mastery is most visible.
- Operation: We utilize high-RPM spindles and carbide tooling. For materials like Titanium Grade 5 (TC4), we use specialized coatings to manage heat.
- Tools/Forms: Tool wear monitoring systems are integrated into our 4-axis and 5-axis centers.
- Output: Semi-finished and finished parts.
- Achievable Effect: DATA: By monitoring tool wear in real-time, we maintain a consistent Ra 1.6μm surface finish across a 500-piece production run without manual intervention.
Step 4: IPQC (In-Process Quality Control)
We don’t wait until the end to check for errors.
- Operation: We conduct First-Article Inspection (FAI) for every new setup. Following FAI approval, our IPQC team performs patrol inspections every 2 hours.
- Tools/Forms: IPQC Inspection Log and digital calipers/micrometers.
- Output: Verified in-process parts.
- Achievable Effect: DATA: Our IPQC sampling at AQL 0.65 ensures that any deviation is caught within 120 minutes, keeping our internal scrap rate below 0.5%.

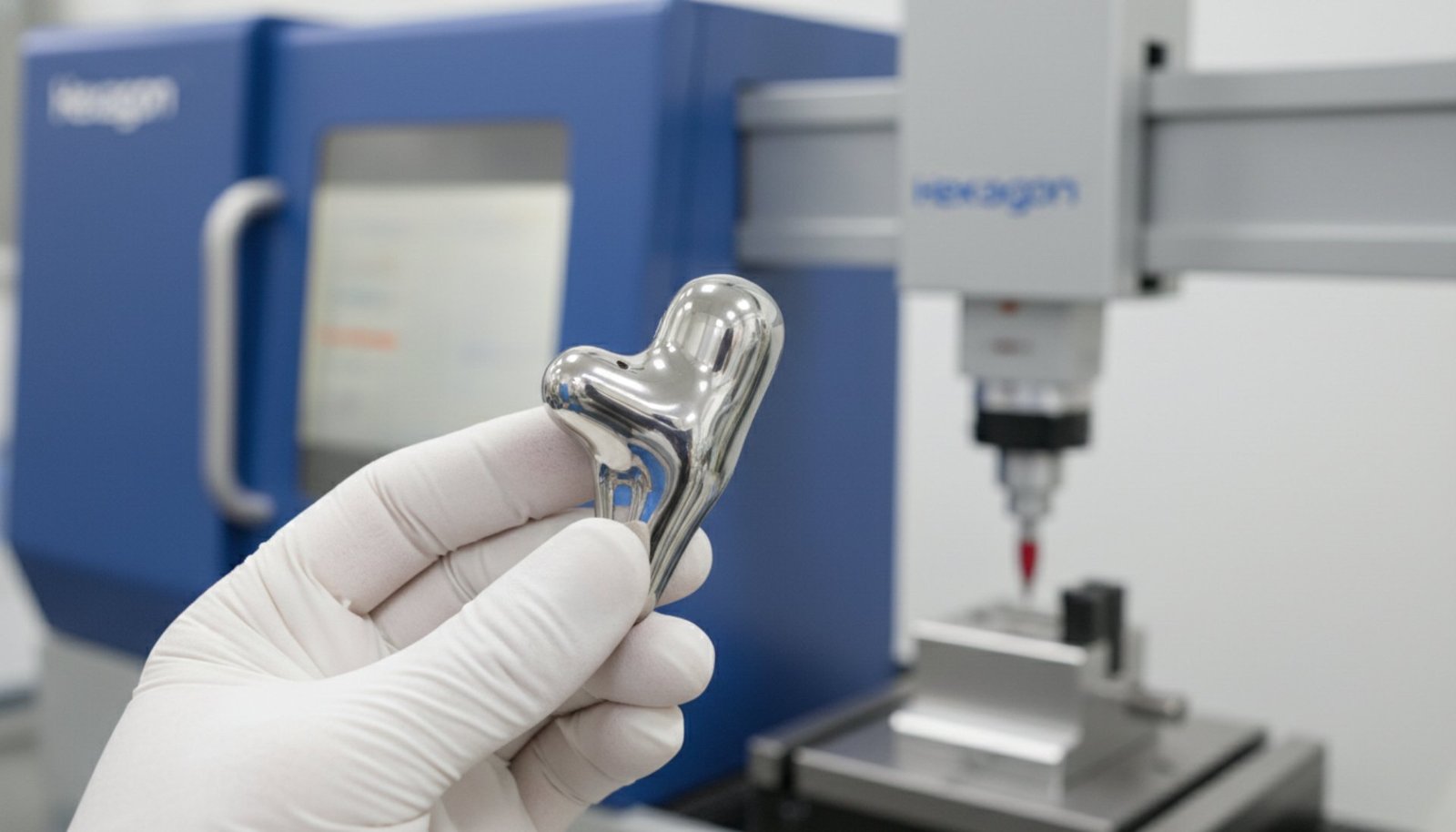

Step 5: Final Inspection and CMM Verification
The final advantage of our process is the guarantee of accuracy.
- Operation: 100% of critical dimensions are checked during OQC (Outgoing Quality Control).
- Tools/Forms: Hexagon CMM, Zeiss CMM, and Optical Comparators.
- Output: Full Dimensional CMM Report and Certificate of Conformance (COC).
- Achievable Effect: DATA: We provide measurement repeatability within 0.001mm, ensuring that parts integrate perfectly into our clients’ assemblies, reaching a zero-defect assembly rate.
4. Precautions: How YLC Machining Ensures Perfection
Even with advanced CNC technology, certain pitfalls can compromise quality. Here is how we mitigate them:
| Potential Pitfall | YLC Machining Prevention Strategy | Data-Driven Result |
|---|---|---|
| Thermal Expansion | We operate in a climate-controlled facility and use high-volume coolant to stabilize part temperature. | Maintains ±0.005mm tolerance even during 24-hour production cycles. |
| Tool Deflection | We calculate optimal “Length-to-Diameter” ratios for all tooling and use hydraulic holders. | Reduces dimensional variance by 30% on deep-pocket features. |
| Workholding Stress | We use torque-limited clamping and custom soft jaws to prevent part deformation. | Ensures flatness and parallelism within 0.01mm on thin-walled components. |
| Vibration/Chatter | We utilize balanced tool holders and variable-pitch end mills. | Consistently achieves Ra 0.8μm finish without secondary polishing. |
Our Prevention Strategy Our IPQC sampling at AQL 0.65 ensures defect rates remain below 500 PPM. We also implement a mandatory “Tool Life Management” protocol where tools are replaced at 85% of their predicted lifespan to prevent catastrophic failure and surface degradation.
5. Related Documents / Forms at YLC Machining
To maintain our ISO 9001:2015 standards, every project is accompanied by:
- Material Mill Test Report (MTR): Proving chemical and physical properties.
- First Article Inspection (FAI) Report: Validating the initial setup.
- IPQC Inspection Log: Tracking quality during the production run.
- Full Dimensional CMM Report: Providing data for every critical tolerance.
- Surface Roughness Report: Verifying Ra values.
- Certificate of Conformance (COC): Final YLC Machining seal of quality.
6. Update History
| Date | Modification Content | Author |
|---|---|---|
| 2024-05-20 | Updated 5-axis capability data and CMM precision standards | YLC Engineering Dept |
| 2025-01-12 | Integrated AQL 0.65 sampling protocols into the SOP | YLC Quality Dept |
| 2026-04-04 | Initial SOP Generation for Core Advantages | YLC Quality Dept |
