CNC Machining Aluminum: Cost Drivers and Expert Optimization Strategies

TL;DR (Quick Summary)

Aluminum CNC machining costs are primarily dictated by material grade, geometric complexity, and spindle time. By optimizing internal radii to match standard tooling and relaxing non-critical tolerances, engineers can reduce production costs by up to 35%. At ylc-machining, we utilize 5-axis technology to minimize setups, further driving down unit prices for complex geometries.

1. Understanding Aluminum CNC Cost Logic

Aluminum remains the “gold standard” for precision machining due to its exceptional strength-to-weight ratio and high machinability index.

1.1 The Technical Essence of Aluminum Machining

Aluminum CNC machining is a subtractive manufacturing process where high-speed cutting tools remove material from a solid block. Because aluminum possesses high thermal conductivity, it allows for significantly higher surface speeds (SFM) and feed rates compared to steel or titanium, reducing overall cycle times.

1.2 The Cost Formula

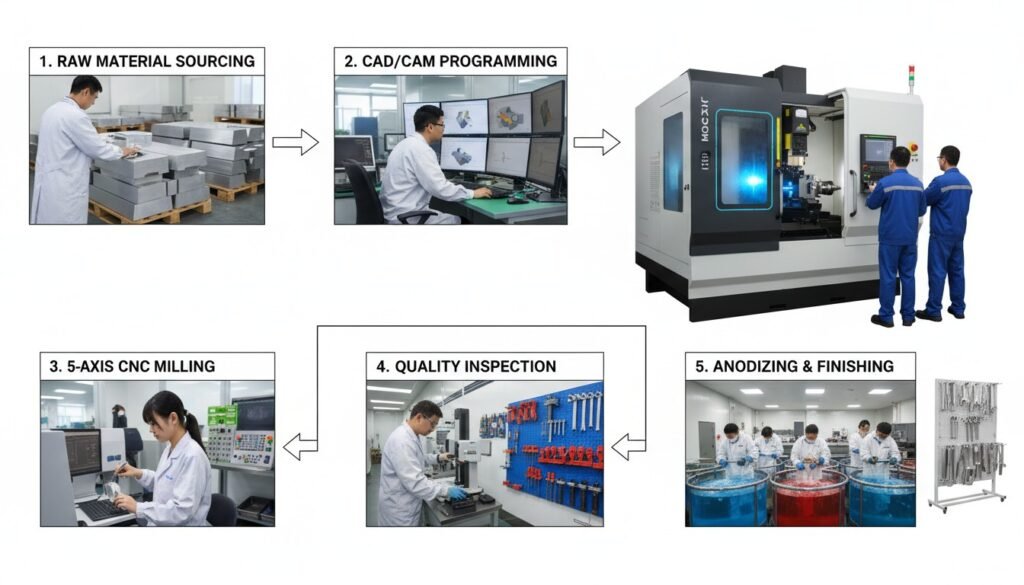

In a professional factory environment like ylc-machining, we calculate costs using a multi-variable equation: Total Cost = (Material Volume × Unit Price) + (Programming Time × Hourly Rate) + (Setup Time × Setup Rate) + (Machining Time × Machine Hourly Rate) + (Finishing Cost) + (Logistics).

2. Four Dimensions of Aluminum Pricing

The difference between a $10 part and a $100 part often lies in details that are invisible to the untrained eye.

2.1 Material Grade Impact

Not all aluminum is created equal. The choice between 6061, 7075, and 2024 affects both the raw material cost and the “tool life” during production.

2.2 Geometric Complexity

Complexity is measured by the number of features requiring different tool paths. I often tell my clients: “If the tool can’t see it, the tool can’t cut it.” Features like deep internal cavities or undercuts require specialized long-reach tooling or multi-axis setups, which exponentially increase the risk of tool chatter and deflection.

2.3 Precision Thresholds

Moving from a standard tolerance of +/- 0.1mm to a precision tolerance of +/- 0.005mm can triple the cost. Tight tolerances require slower feed rates, more frequent tool offset measurements, and climate-controlled inspection rooms to account for thermal expansion.

2.4 Surface Finishing Price Tiers

Surface treatment is the final cost driver. A “Machine Finish” (Ra 3.2) is the cheapest. Adding Type II Anodizing adds a fixed batch cost, while Type III Hardcoat Anodizing or specialized chemical film (Chromate) increases the price due to tighter process controls.

3. Unmasking the “Hidden Costs” of Design

As a technical director at ylc-machining, I frequently review designs where 20% of the features cause 80% of the cost.

3.1 The Internal Corner Trap

A common mistake is designing sharp 90-degree internal corners. Since CNC milling bits are cylindrical, they cannot cut a sharp internal corner. Requiring a sharp corner forces the factory to use EDM (Electrical Discharge Machining), which is significantly slower and more expensive.

• Pro Tip: Always design internal corner radii to be at least 110% of the tool radius to allow for smooth chip evacuation.

3.2 Deep Pocketing and Tool Deflection

Pockets deeper than 4x the tool diameter lead to “tool deflection” and poor surface finish. To counteract this, we must reduce cutting speeds, which increases the time-on-machine cost.

3.3 Setup Frequency (The Labor Burner)

Every time a technician has to manually flip a part to machine a new face, you are paying for labor and machine downtime. A part requiring 6-sided machining on a 3-axis mill will always be more expensive than a part optimized for 2 setups on a 5-axis machine.

4. 2025 Digital Trends in CNC Machining

The industry is shifting toward “Lights-Out Manufacturing” where automation minimizes the human-cost variable.

4.1 5-Axis Linkage Advantage

Modern 5-axis machines at ylc-machining allow us to reach complex angles in a single setup. According to the 2024 Global Manufacturing Efficiency Report, 5-axis utilization can reduce total lead times by 40% for aerospace-grade aluminum components.

4.2 AI-Driven DFM and Quoting

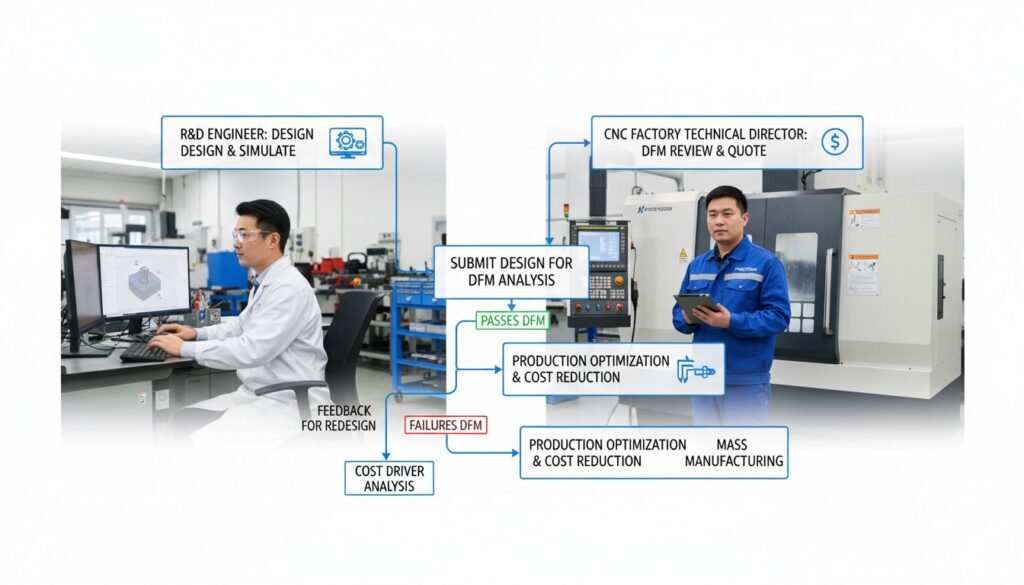

We are moving away from manual estimation. AI algorithms now analyze STEP files to identify “unmachinable” features instantly. This reduces the communication loop between the procurement manager and the engineer, ensuring that the quote you receive is based on optimized toolpath logic.

5. Five Step Action Plan for Cost Reduction

If you want to maximize your budget, follow this checklist before submitting your RFQ to ylc-machining.

1. Optimize Internal Radii: Use a minimum radius of 3.175mm (1/8″) where possible to accommodate standard high-speed end mills.
2. Standardize Hole Sizes: Use standard drill sizes to avoid the need for custom boring tools.
3. Relax Non-Critical Tolerances: Identify surfaces where +/- 0.125mm is acceptable. Only apply +/- 0.01mm to mating surfaces or bearing seats.
4. Consolidate Setups: Design parts so they can be machined from a single direction or two opposite directions.
5. Leverage Stock Sizes: Design your part dimensions to be slightly smaller than standard aluminum plate thicknesses (e.g., design for 23mm if using a 25.4mm plate) to minimize face-milling time.

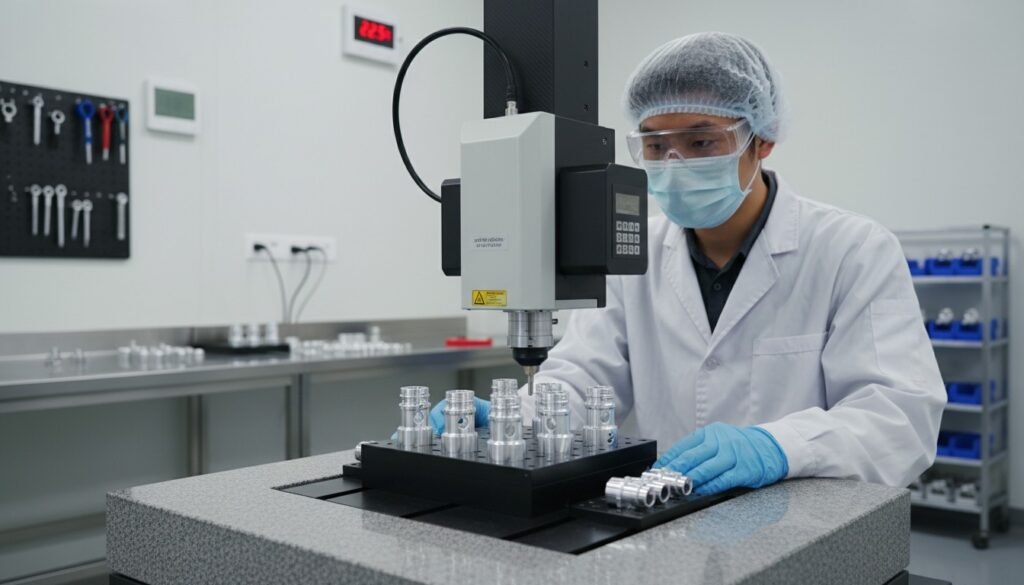

6. Case Study: Medical Device Housing Optimization

At ylc-machining, we recently handled a project for a medical imaging housing that was initially quoted at $145 per unit.

• The Problem: The original design featured deep internal pockets with R0.5mm corners and a +/- 0.005mm tolerance on the exterior cosmetic surface.
• The Optimization: We suggested increasing corner radii to R3mm and relaxing the exterior tolerance to +/- 0.05mm (while maintaining the high-quality Ra 1.6 finish). We also switched the material from 7075 to 6061-T6, as the structural requirements did not justify the 7075 premium.
• The Result: The unit price dropped to $92, representing a 36.5% cost reduction without compromising device functionality.

7. Critical FAQ: The Direct Answer Section

Q1: What is the average hourly rate for aluminum CNC machining?

In 2025, professional B2B rates for 3-axis machining typically range from $40 to $70 per hour, while 5-axis machining ranges from $80 to $120 per hour, depending on the machine’s precision and the factory’s overhead.

Q2: Why is 6061 the most common aluminum for CNC?

6061-T6 offers the best balance of weldability, corrosion resistance, and machinability. It is widely stocked, which means lower raw material costs and faster procurement compared to niche alloys like 2014 or 7050.

Q3: How does batch size affect the price?

The “Setup Cost” is fixed. If it takes 2 hours to set up a machine ($150 cost), that $150 is spread over 1 unit ($150/unit) or 1,000 units ($0.15/unit). This is why “scaling up” is the most effective way to lower per-part costs.

Q4: Can I get a “mirror finish” directly from the machine?

While possible with diamond tooling (SPDT), a standard CNC machine produces a “milled finish.” To achieve a mirror look, you must specify mechanical polishing followed by clear anodizing, which adds to the lead time and cost.

Q5: How do I know if a CNC factory quote is “fair”?

A transparent quote should break down: Material, Machining Time, Setup, and Finishing. If a factory like ylc-machining provides a DFM report with the quote, it indicates they are optimizing for your project’s success rather than just providing a generic number.

Author Information:
YU WEN
Senior Technical Director, ylc-machining
Expert in Multi-Axis Milling & Aerospace Materials
Certified Manufacturing Engineer (CMfgE)
